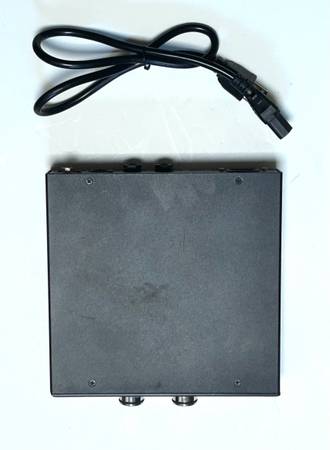

Grace Design M101 microphone preamp - $525 (Soquel)
QR Code Link to This Post
I’ve used this on many recordings in a variety of applications and settings with different mics and instruments and it has consistently provided fantastic crystal clear result. Only reason I’m selling is that I have two others and my new setup only requires two
From website:
Maintaining Grace Design pedigree throughout, the m101 employs our balanced, transformerless, transimpedance circuit topology. With incredible bandwidth and headroom, the m101 is natural, musical and detailed, allowing engineers and musicians to consistently record vibrant, amazing tracks.
The m101 is equipped with our new universal switching power supply, which is dead quiet and accepts input voltages from 100 to 240VAC. The front panel is a tough black anodized / laser etched black, which ensures legibility and usability in varying light conditions. And all preamp functions have a dedicated indicator LED, including the 48V phantom power and HPF switch.
Built in as standard is our unique Ribbon Mic Mode, which bypasses the input decoupling capacitorss, raises the input impedance from 8.1kΩ to 20kΩ, and defeats the 48V phantom power, preventing damage to delicate ribbon mic elements. Ribbon mics, you’re welcome.
“After reading pages of reviews and searching the web for comments for a couple months before buying the Grace 101, I can honestly testify that everything I ever read about the dead on sonic qualities of this pre amp is absolutely true. I’m in for another for my live vocal rig!”
The gain range is 10-75dB, including the additional +10dB of gain available with the output trim control. This provides ample gain for use of any type of microphone in any recording situation. The gain control is a precision gold plated 12 position switch and the circuit path is built with 0.5% metal film resistors.
Included is a HI-Z input on the front panel. Rear panel I/O options include both balanced TRS and unbalanced TS 1/4” outputs, along with the standard XLR balanced out and XLR microphone in.
Equally at home amplifying a vintage condenser mic or a plugged-in acoustic guitar, the m101 delivers the kind of high fidelity performance previously available only to big budget recording studios and Grammy winning musicians. Add it all up while considering that the price is unmatched and the picture becomes pretty clear – the m101 is one little hot rod piece of pro audio gear for the masses.
