CNC MAZAK PFH 5800 HORIZONTAL CELL SYSTEM - $70,000 (santa cruz)
make / manufacturer:
MAZAK
model name / number:
PFH 5800
QR Code Link to This Post
$70,000

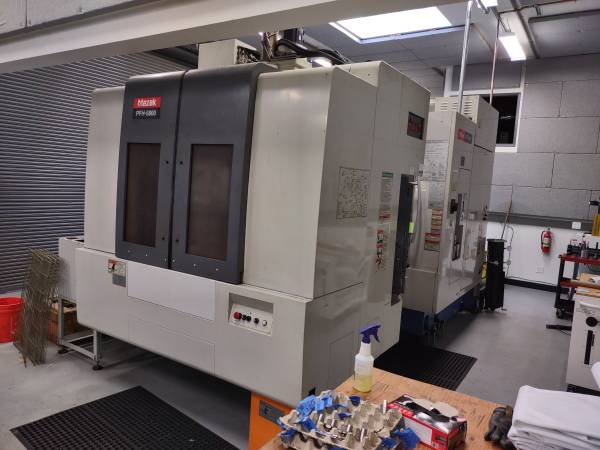

-2 Mazak PFH-5800 with 10 station pallatech system.
-Year: 2003
-Mazatrol 640M Controls
-Full 4th axis on both machines
-15,000 RPM spindles
-30 HP
-80 tool ATC
-CAT 40
-Thru spindle coolant
-Auto tool length measurement
-19.7 inch pallet size
-X axis travel: 28.7 inch
-Y axis travel: 28.7 inch
-Z axis travel: 29.1 inch

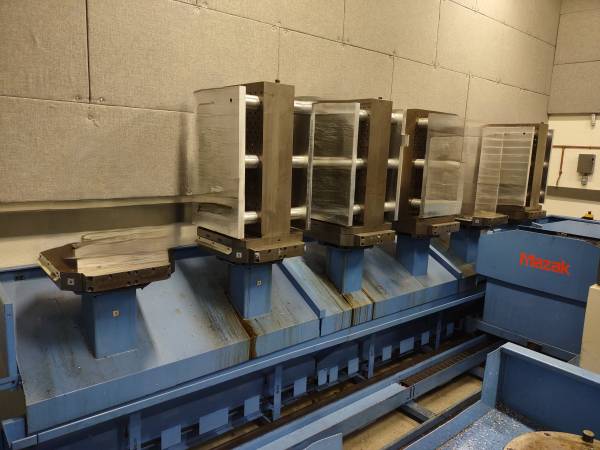

Includes 13 pallets & 9 tombstones.
Please read:

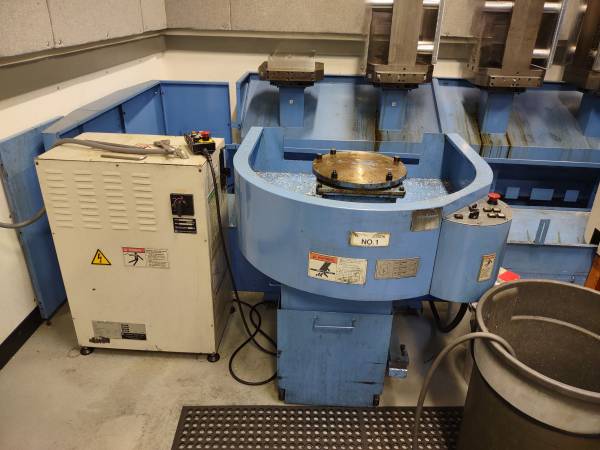

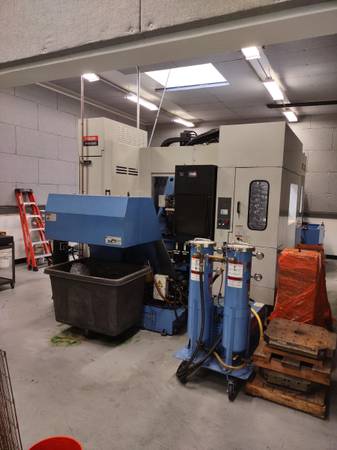

We purchased this system used in 2020. We had to reconfigure the system to get it to fit in our allotted space. We separated the Slave machine to be used as a stand-alone. We reduced the pallatech system to 6 stations on the Master machine. We have all the original parts and the system can be re-set up to it`s original configuration if need be. Located in Santa Cruz, CA.

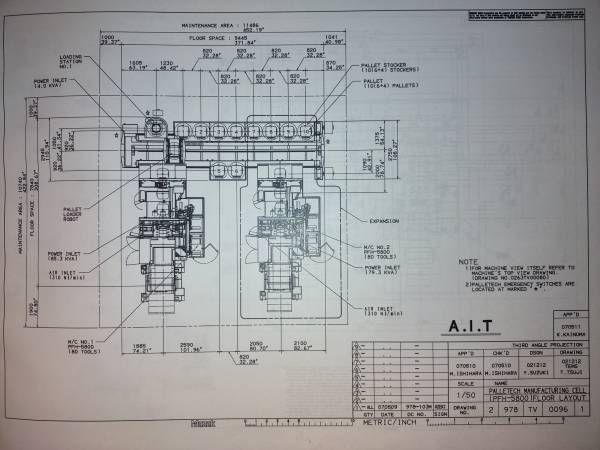

Photos: Tooling on pallets was blurred out to protect customer proprietary information. One photo shows original schematic configuration.
Serious enquiries only!
keywords: machine shop, cnc, cnc machining center, milling machine, horizontal milling machine
