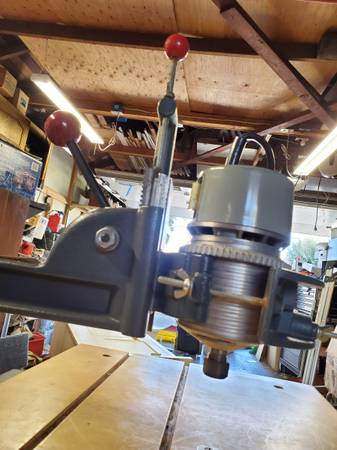

Shopsmith Overarm Pin Router w/ Stanley Industrial Router - $1,180 (morgan hill)
QR Code Link to This Post
SPECIFICATIONS:
Maximum router motor HP.......................... 3 hp
Diameters of router motors
accepted (round motors only)................. 2-1/2" to 4"
Throat depth (router bit
centerpoint to Way Tubes)* .........10-1/2" to 18-1/2"†
Vertical motor travel (lever-controlled)............ 3-1/2"
Maximum workpiece thickness ............. Approx 11"‡
Worktable size
(laminate-covered MDF).......18-1/2" d x 28" w x 3/4"
Fence size (2) .......................... 13-1/4" w x 1-1/4" h
Guide pin diameters furnished ...... 1/4", 3/8" and 1/2"
Starter pin diameter furnished .......................... 1/4"
Maximum router bit diameter (with insert) ...... 1-3/8"
Maximum router bit diameter (without insert) ....... 2"
Dust port diameter ....................................... 2-1/4"
* With a 3-1/2" diameter router motor. Distances will
vary, depending on router motor diameter.
† Maximum dimensions, based on which set of four
Arm mounting holes are used
‡ Varies, depending on router motor and bit used
===========================================================
Stanley Industrial Router:
Stanley Router Model .05 with Bosch Motor Model 90150M. This used router is in good condition and works.
Stanley Power Tools, part of Robert Bosch Power Tool Corporation, Made in USA.
120V, 60 Hz, 9.0A, 1050 W, 26,000 RPM,
Serial No. 02679.
