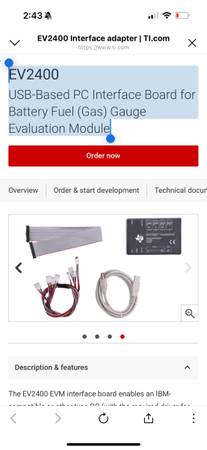

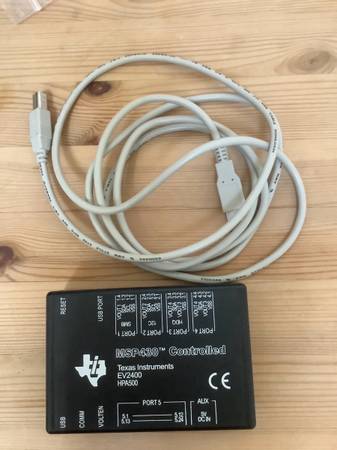

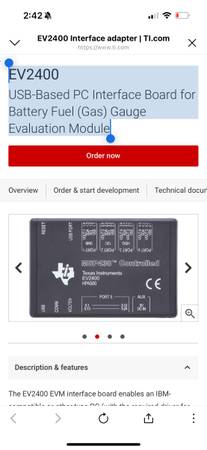

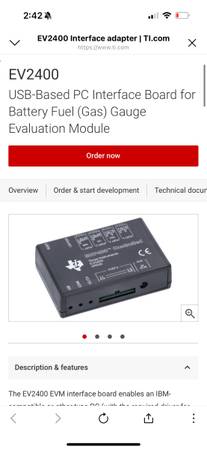

EV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu - $199 (Sunnyvale)

‹ image 1 of 5 ›
EV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu 1
EV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu 1 thumbnailEV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu 2 thumbnailEV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu 3 thumbnailEV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu 4 thumbnailEV2400 USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation Modu 5 thumbnail

QR Code Link to This Post

The EV2400 EVM interface board enables an IBM-compatible or other type PC (with the required driver for its particular platform) to communicate with the Texas Instruments SMBus or I2C interface gas gauges via a Universal Serial Bus (USB) port. In addition to this board, PC software is required to interpret the gas gauge data to complete the evaluation system.

Features

Fully powered from the USB port
Optional 5-V port for powering high power voltage drivers (future upgrade)
Complete interface between the USB and SMBus, I2C (8/16) interfaces
Expansion port for future upgrades
