GIGABYTE B650M Gaming Plus WiFi AMD Socket AM5 Motherboard - $90 (sunnyvale)
condition:
excellent
make / manufacturer:
GIGABYTE
model name / number:
B650M Gaming Plus WiFi
size / dimensions:
9.6"W x 9.6"L
QR Code Link to This Post

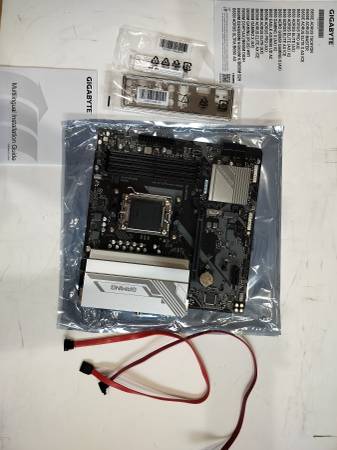

Comes will original box, packaging and all original inbox material. Note: SATA cables x 2 are not from original box.
Terms of Sale: As Is Sale. Genuine local buyers only. Strictly CASH only. No Zelle/Venmo other online payments
Manufacturer Specifications as listed on Newegg:
====================================
https://www.newegg.com/gigabyte-b650m-gaming-plus-wifi-micro-atx-motherboard-amd-b650-am5/p/N82E show contact info
ModelBrand GIGABYTE
Model B650M GAMING PLUS WIFI
Supported CPUCPU Socket Type AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series
ChipsetsChipset AMD B650
MemoryNumber of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400
Maximum Memory Supported 192GB
Channel Supported Dual Channel
Memory Feature 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
Expansion SlotsPCI Express 4.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x1 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage DevicesSerial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID Controller RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Onboard AudioAudio Channels 7.1 Channels
Onboard LANMax LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 802.11 ax
Bluetooth BLUETOOTH 5.3

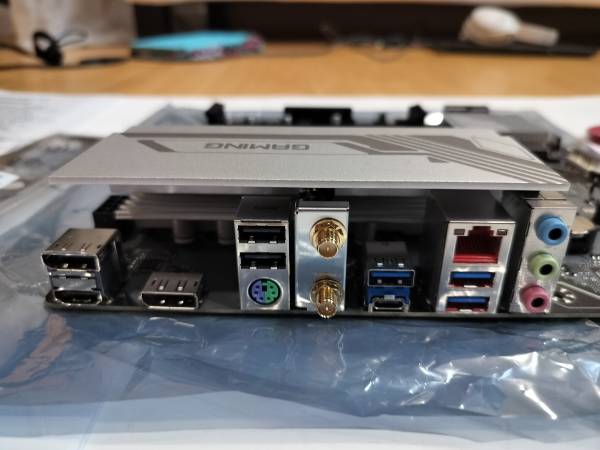

Rear Panel PortsBack I/O Ports 1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
2 x SMA antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Internal I/O ConnectorsOnboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
