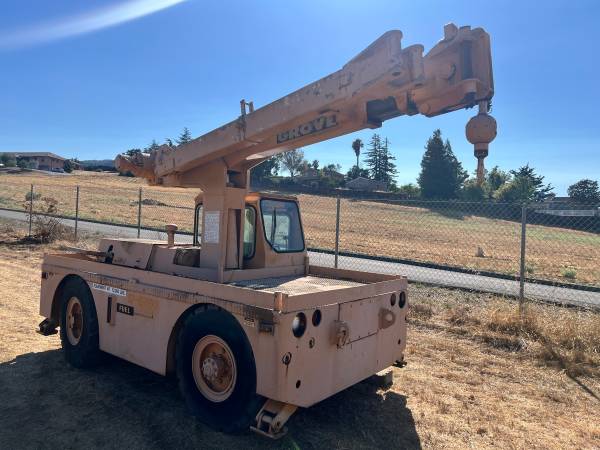

Grove Carry Deck Crane IND-24 go up 27 feet lift 6 tons - $16,000 (san jose south)
McKean Rd near Almaden Expressway
QR Code Link to This Post
Brand: IND-24
VIN: 42182

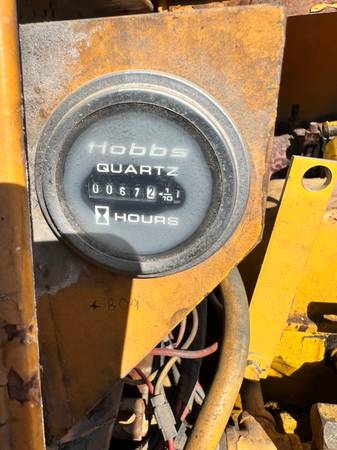

HOURS: 672
This Carry Deck Crane is good for HVAC business so you can lift the AC unit to the roof of the building or any business that requires to lift 6 tons of equipment to a high place. You can put this crane on the trailer and tow to the job site to do the work.
PERFORMANCE & BOOM:
Maximum Lift Capacity: 12,000 lbs or 6 tons
Boom: 3-section telescopic, elevating up to 60 degrees
Boom reach/radius:
Max working radius: 28 feet
Min working radius: 6 feet
Height Range:
Minimum height at Max elevation: 9 feet
Maximum height without jib: 20 feet
Swing Speed: 2.8 rpm
CARRIER & POWERTRAIN:
Engine: Grove 4-cylinder, 61 Hp (45 kW) at 2,250 rpm
Max torque: 172 lb-ft at 1,250 rpm
Transmission: Funk powershift, 3 forward, 3 reverse gears
Top speed: 15 mph
Dimensions:
Length: 13.8’
Height: 7.5’
Width: 6.17’ with outriggers extended: 8.17’
Carrier length: 11 feet
Tail Swing radius: 4.6 feet
Ground clearance: 0.6 feet
Weight: 13,000 lbs
CAPACITIES & SYSTEMS:
Fuel Capacity: 20 gallons
Hydraulic Fluid Capaity: 33 gallons
Electrical System: 12 V, alternator: 42 A
Tires: 10.00x15-14PR
Come to South San Jose, California to inspect and check it out.
Address: McKean Rd, San Jose, CA 95120
Thanks
