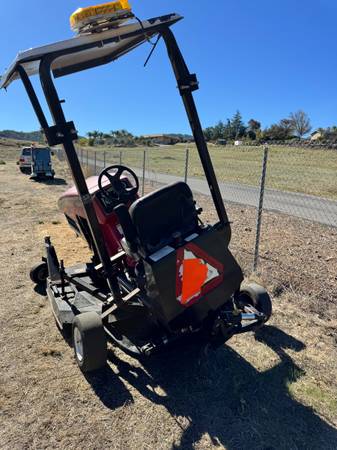

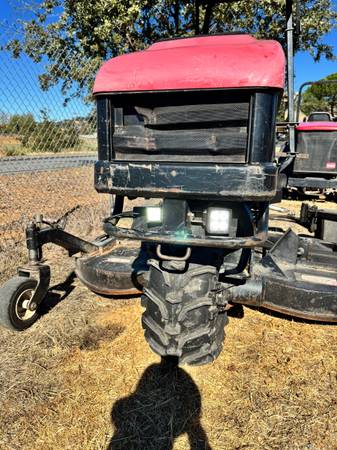

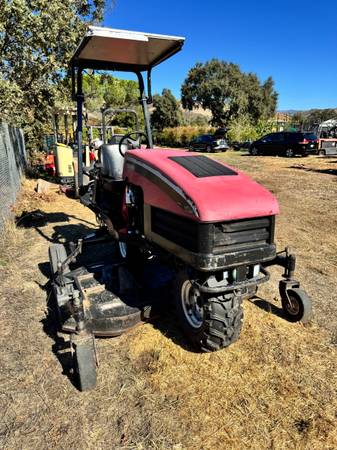

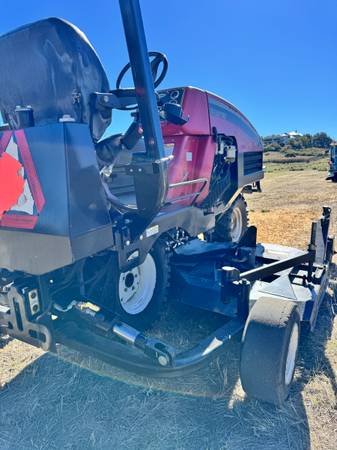

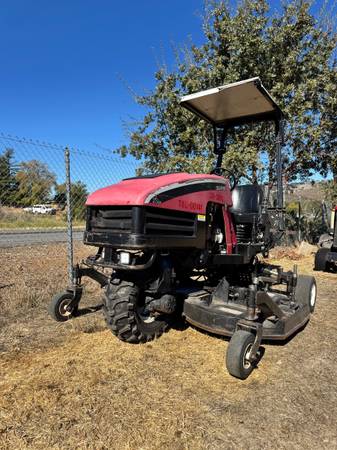

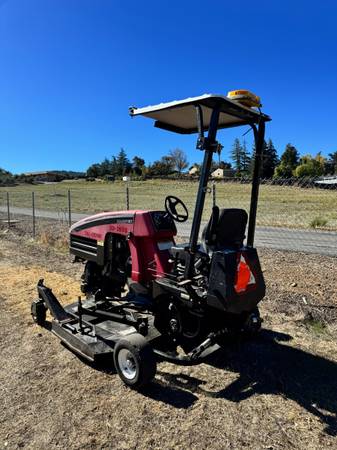

2017 Harper Slope All Terrain Mower for hillside and slope job sites - $19,000 (san jose south)
McKean Rd near Almaden Expressway
QR Code Link to This Post

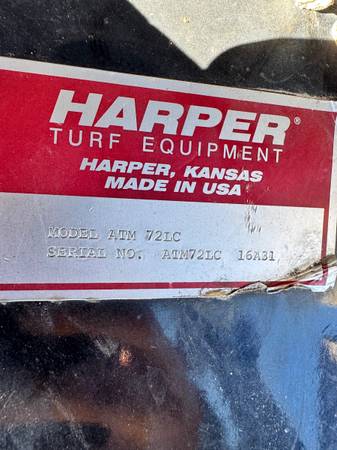

Model: ATM72LC
Year: 2017

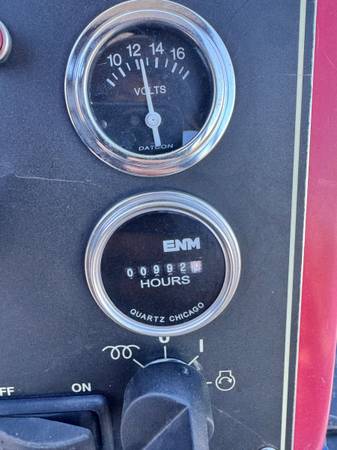

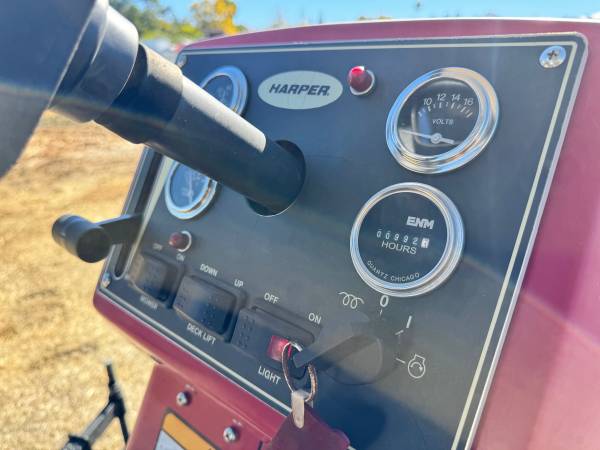

Hours: 992
Serial Number: ATM72LC-16A31
The Harper ATM72LC is a slope mower designed for safe and efficient operation on steep terrains, capable of handling slopes up to 34 degress. It features an automatic hydraulic self-leveling system that keeps the operator and engine upright, enhancing safety and performance.
Steering: hydraulic power steering
Transmission: Hydrostatic
Brakes: Hydrostatic, integrated with dashboard on/off switch
Seat: Adjustable suspension seat with armrests and seat belt.
Cutting Units:
Overal Cutting Width: 72 inches or 6 feet
Cutting Height: adjustable from 3 to 7.5 inches to 0.5 inches increments
Blade size: 21 inches
Tip speed: 15,500 ft/min
Deck Configuration: two 36 inches decks with independent free flotation and rear discharge.

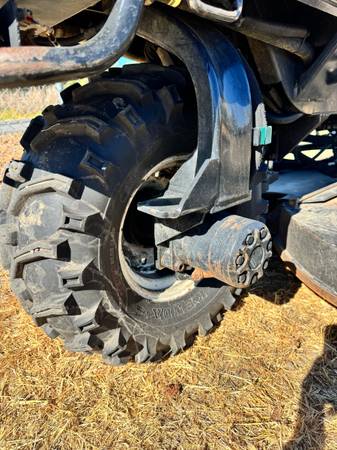

Mower Tires
Deck Caster: 11” x 4” x 5” foam filled
Drive: 25” x 11-12”, 6-ply
Stabilizer: 16.5” x 6.5” x 8”, foam filled

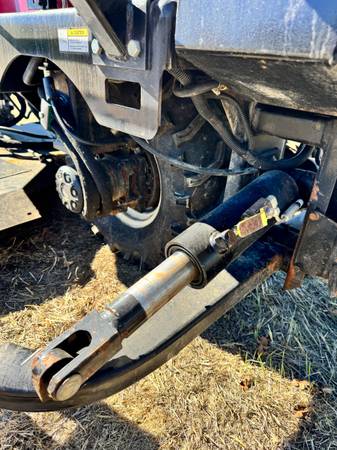

Leveling System:
Automatic hydraulic self-leveling to 34 degress with manual override mounted on the armrest
Speed:
Mow: 0-7 mph
Production: 14 acres per hour at 7 mph

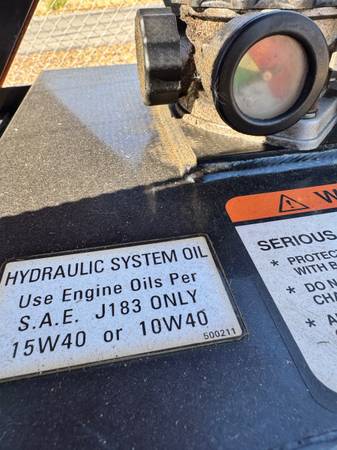

Hydraulic System:
Fuel Capacity: 11.5 gallons with a hydraulic oil cooler
Reservoir: 33 gallons
Fluid Type: ISO VG 68

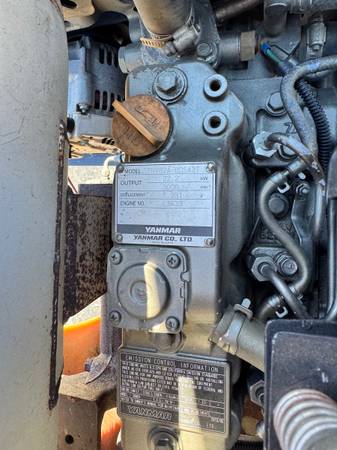

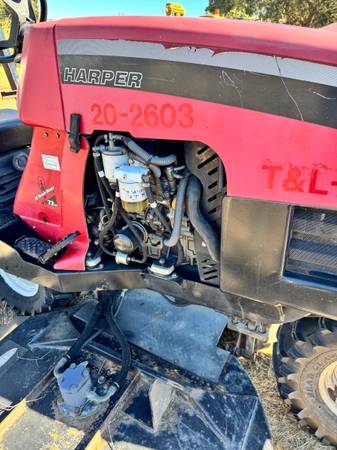

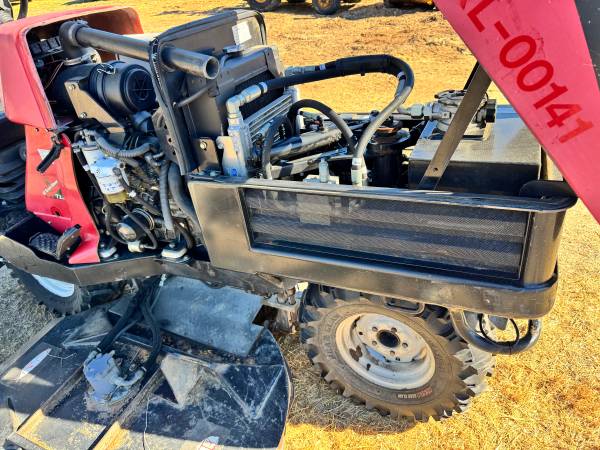

Engine: Yanmar Turbocharged diesel 4 cylinders
Cooling: Liquid-cooled system
Made in Japan
Horse Power: 31 hp at 2600 rpm
Fuel: Diesel, Capacity: 10 gallons
Oil: 14 qts: Type SAE 15W40
Model: 3TNV82A-BDSA2T
Engine# E3633
Dimensions:
Length: 107 inches or 8’9”
Height: 90 inches or 7’5”
Width: Transport: 75 inches or 6’2”
Weight: 2500 lbs

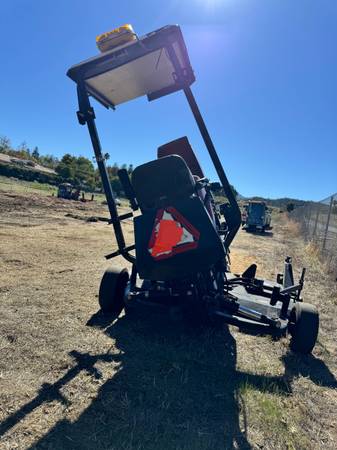

With ROPS (Roll Over Protective Structure)
Come to McKean Rd, San Jose, California 95120 to inspect and check it out.
Thanks
