2007 Magnum Light Tower, Sign Board and Outdoor Generator for sale - $7,500 (san jose south)
McKean Rd near Almaden Expressway
condition:
good
engine hours (total):
333
make / manufacturer:
Magnum
model name / number:
MLT4060MMH
QR Code Link to This Post
Model: MLT4060MMH
Year: 2007
Hours: 333
VIN#: 072216

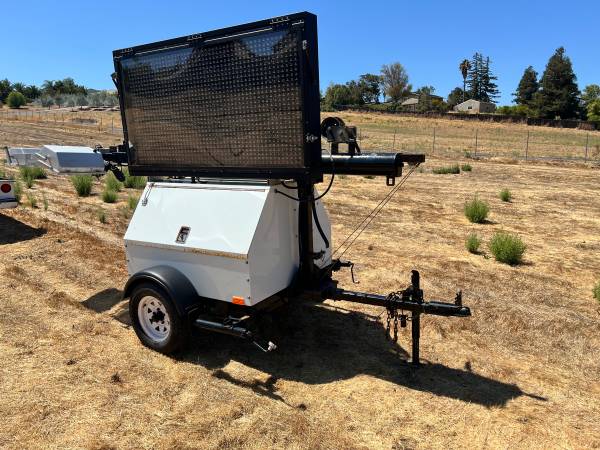

Magnum (now Generac Mobile) Light Tower is known for durable construction and long service life. They use Kubota diesel engines, which are highly reliable and fuel efficient. It serve both Light Tower, Sign board and outdoor generator
ENGINE & POWER GENERATION:
Engine:
Kubota D1105-E3BG, liquid-cooled diesel
Standby Power: 15.4 Hp @1,800 RPM
Prime Power: 13.5 Hp @ 1,800 RPM
Cylinders/Displacement: 3 cylinder, 1.12L
Fuel Consumption: 0.7 Gallons
Generator Output: 8kW, 60 Hz
Fuel & Runtime:
Fuel Tank Capacity: 30 Gallons, offering approximately 60-70 hours of run time
MAST & LIGHTING:
Maximum Mast Extension Height: 30 feet
TOWING SPEEDS:
Highway: up to 45 MPH
Off-Road: No more than 10 MPH
Tire sizes: ST175/80R13
Maximum Tire Pressure: 50 PSI
LIGHT TOWER BULBS:
Standard configuration uses metal halide lamps
Bulb type: 1,000-watt metal halide (MH) bulb
Base type: Mogul E39 screw base
Light output: 110,000 lumens per bulb
Quantiy: 4 lamps per tower
Upgrade option: Some owners retrofit their towers with LED lamp heads (200-350 W per fixture) for lower fuel consumption, less heat, and longer lifespan. These usually bolt right on in place of the MH fixtures
On Amazon:
75W-LED shoebox Retrofit Kit lights Great for Street Shoebox Lamp, Flood Lights
Great value, 75W LED replacing up to 350 W metal halide
Delivers 10,125 lumens at daylight color (5,000 K)
Uses common E39 mogul base, ideal for many light tower heads.
Shoebox LED Retrofit Kit 300W 42,000LM 5,000K Daylight E39 Base:
Higher power output-42,000 lumens, 300W LED
Suitable where stronger illumination is needed, and still connects with E39 base
DIMENSIONS:
Length: 170 inches or 14’
Height: 70 inches or 5.8’
Width: 68 inches or 5.6’
Weight: 2,000 lbs
TOWING HITCH:
2.5” Lunette Ring
The engine and all the hydraulic functions works. Come to downtown San Jose, California to inspect and check it out.
Address: McKean Rd, San Jose, CA 95120
Thanks
