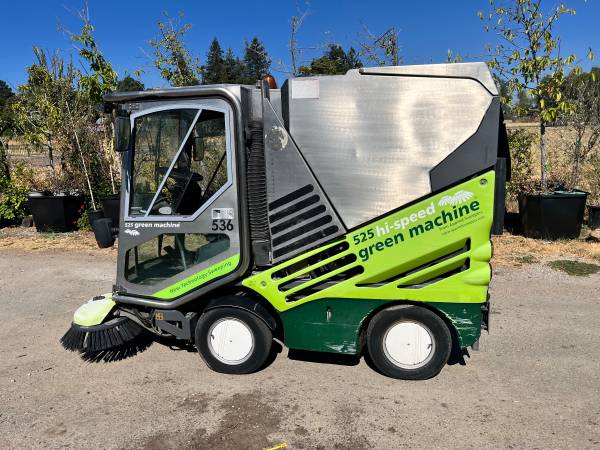

2005 Tennant compact Sweeper 525 Green Machine 4x4 Diesel for sale - $20,000 (san jose south)
McKean Rd near Almaden Expressway
condition:
good
engine hours (total):
1745
make / manufacturer:
Applied Sweepers/Tennant
model name / number:
525 Hi-Speed Green Machine
QR Code Link to This Post
Brand: 525 HI-SPEED GREEN MACHINE
VIN: SA9525HS84F131309
HOURS: 1,745
The 525 Hight Speed Sweeper provides robust diesel power, excellent maneuverability, efficient mulching capacity, and strong built quality, all packed in a compact, operator friendly design. Good for your business to operate at parking lot, city parks, Mobile home parks or big facilities.
Sweeping System:
Main Broom Width: 31 inches
Side Brushes: Dual Side Brushes for curb-edge sweeping
Sweeping Width: 47”-71” using dual front-mounted brushes
Front brush diameter: 24”
Hopper Capacity: 1.1 cu yard
Mulching Impeller fan: hardened steel, reduces debris volume by 3-4x
Dump Height: 59 inches, hydraulic lift
Vacuum system: powerful turbine fan, dust suppression
Environmental:
Dust control: High-efficiency particulate filtration. Cyclonic dust separation (3 stages) with water spray mist, avoiding filter clogging
Noise Level: 80-85 dBA (operator station)
Water tank: 45-55 gallons (dust suppression spray system) lasting 2-4 hours
Enclosed cab with heater/AC
Joystick or lever controls, excellent visibility, fold-down for service
Back-up alarm & stroke light
High-speed road transport
Chassis & Maneuverability:
Chassis: stainless steel and chromweld corrosion-resistant frame
Steering: Hydrostatic 4-wheel drive, variable front track for transport vs sweeping
Turning radius: tight 75” curb-to-curb per spec sheet
Brakes: hydrostatic with secondary hydraulic drum braking
Wheel & Tires:
Front Tires: 165/70 R13
Rear Tires: 23x8.50-12
Wheel Type: Steel rims
Front Wheels: 13” rims (4 bolt pattern, common passenger style)
Rear Wheels: 12” rims (6-bolt pattern, heavy duty hub)
Tire pressure: 35-45 psi
Speed:
Top Speed: up to 20-23 mph
Operating Speed: 8 mph sweeping
Reverse speed: 4 mph
Gradeability: capable on up to 20% inclines
Engine: Kubota
Model: D1105T Diesel (Tier 2) 3-cylinder turbo diesel, water-cooled
Displacement: 1,123 cc
Horse Power: 31.3 hp at 2400-2800 rpm

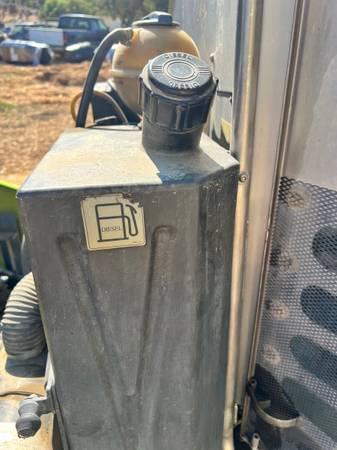

Fuel: Diesel, Capacity: 9.5 gallons
Oil: 14 qts: Type SAE 15W40
Dimensions:
Length: 125 inches or 10.4’
Height: 77 inches or 6.4’
Width: 43 inches or 3.5’
Wheelbase: 48” front track adjustable between 37.4”-46.9”
Weight: 4,382 lbs
Come to downtown San Jose, California to inspect and check it out.
Address: McKean Rd, San Jose, CA 95120
Thanks
