Hi-Pot / Continuity Tester - Sotcher Model 566, ~2.5kV 10mA - $50 (san jose south)
stokes st near leigh st
QR Code Link to This Post

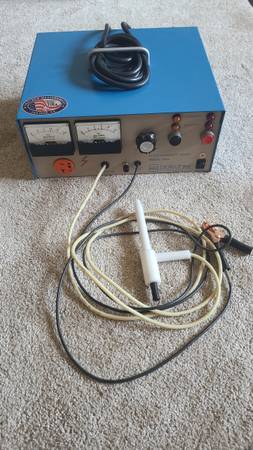

for high-voltage dielectric testing (hipot testing) and continuity verification of electrical devices.
---
Specifications:
Output Voltage (AC):
Up to 2.5 kV AC (as indicated by the left analog meter).
Current Measurement Range:
Up to 10 mA AC (as indicated by the right analog meter).
Functions:
Dielectric (Hi-Pot) Test – For checking insulation breakdown by applying high voltage.
Continuity Test – To verify low-resistance electrical continuity.
Controls & Indicators:
Voltage Control Knob – Adjusts output voltage.
Continuity & Dielectric LEDs – Show test status.
Red Button – Typically “Reset” or “Test Start”.
Black Button – Possibly a manual test activation.
Power Switch – On/off control.
High Voltage Output Terminal (Banana Jack)
Ground Terminal
Orange Socket – Likely for DUT (Device Under Test) AC connection.
Typical Applications:
Quality assurance and safety testing for electrical products.
Ensuring proper insulation and safety before shipping equipment.
