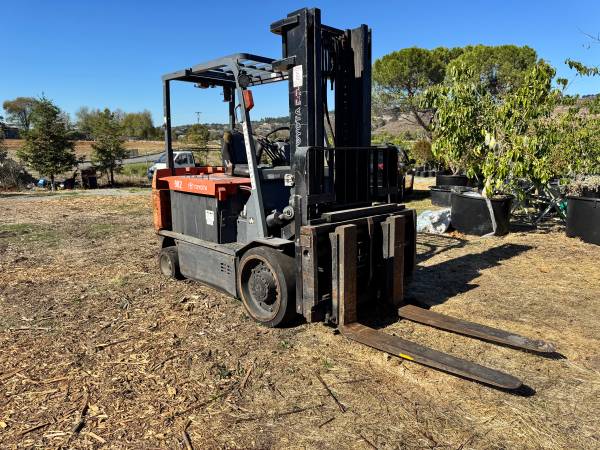

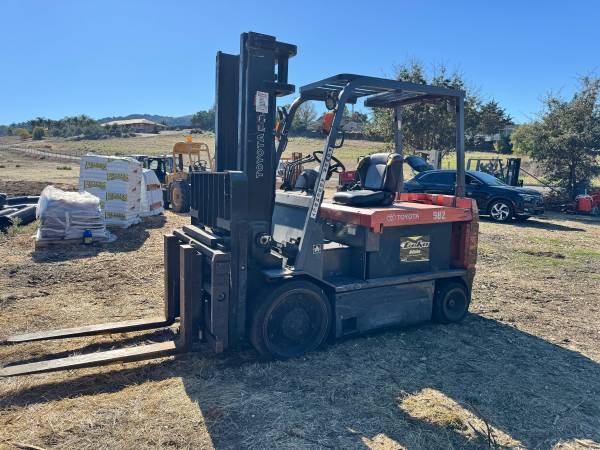

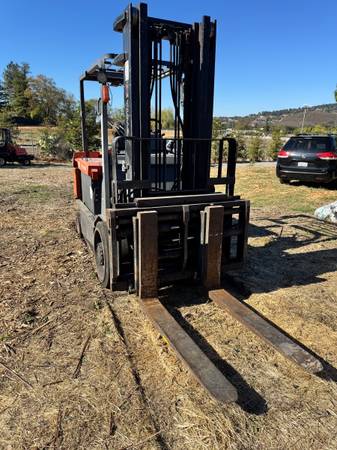

2013 Toyota Electric Forklift 7FBCU55 go 13' high lift 12,000 lbs - $18,000 (san jose south)
McKean Rd near Almaden Expressway
QR Code Link to This Post

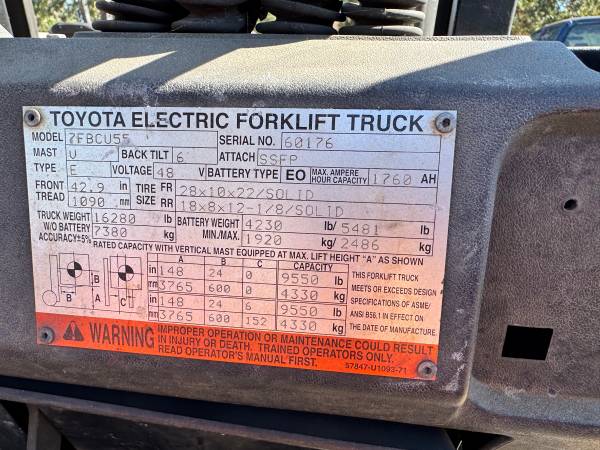

Brand: Toyota
Model: 7FBCU55
Serial# 60176
Hours: 7,478
GENERAL / OPERATING:
Rated Load Capaity: 12,000 lbs
Load Center: 24 inches
Operating weight: 16,280 lbs
Tire Type: Cushion (1 Front/ 1 Rear)
Front Drive tread width: 42.9 inches
Front Tire: 28x10x22 Solid wheels
Rear Tire: 18x8x12-1/8 Solid wheels
PERFORMANCE / DRIVE / POWER:
Battery Voltage: 48 V
Battery Capacity: 1,700 Ah
Battery Weight: 5,481 lbs
Max Travel Speed (full load): 7.5 mph
Lift Speed (full load): 37 ft/min
Lift Speed (no load): 65 ft/min
Lowering speed: 98 ft/min
Drawbar Pull (3-min rating, full load): 4,780 lbs
Gradeability (full load): 14%
Hydraulic Relief Pressure: 2,630 psi

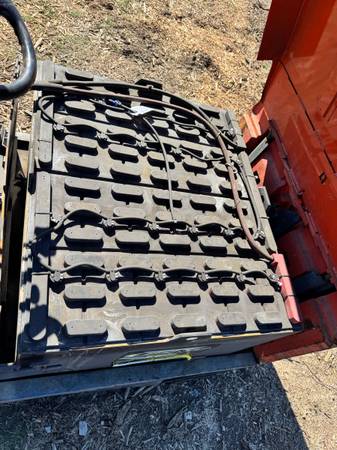

DEKA BATTERY:
Battery Type: 24-D85-29
Serial# 1871HK
Full Charge Specific Gravity: 1.280-1.295
Nominal Votage: 48
Rated 6 Hours A.H Capacity: 60
East Penn Manufacturing Co. Inc, Lyon Station, PA 19536

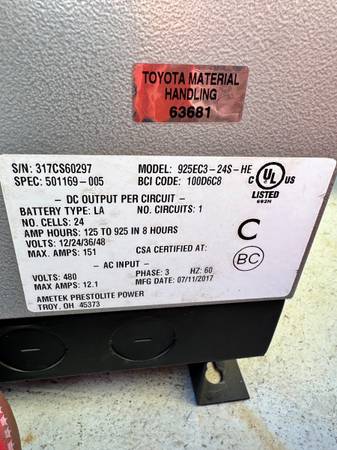

BATTERY CHARGER:
Company: AMETEK Prestolite Power, Troy, OH 45373
Model: ECLIPSE II
Serial# 317CS60297
Spec: 501169-005
Model: 925EC3-24S-HE
BCI CODE: 100D6C3
DC OUTPUT PER CIRCUIT
BATTERY TYPE: LA
No of Circuits: 1
No Cells: 24
AMP HOURS: 125 TO 925 IN 8 HOURS
VOLTS: 12/24/36/48
MAX AMPS: 151
AC INPUT:
VOLTS: 480
MAX AMPS: 12.1
PHASE: 3
HZ: 60
MAX AMPS:
ELECTRIC / DRIVE SYSTEM & CONTROLS:
AC drive system (MOSFET/ transistor inverter)
Load handling (lift/lower) via transistor chopper control

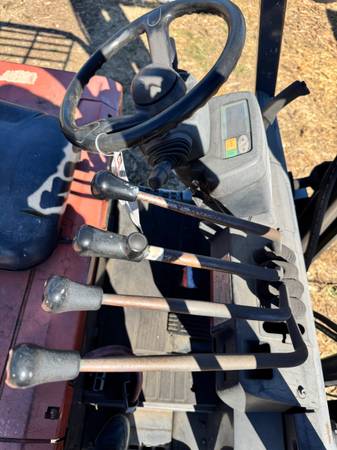

Hydrostatic / electronic power steering / electric directional shift control
The model is part of Toyota’s “Large Electric / 7-Series” line which includes their SAS (System of Active Stability) for better safety and load stability
DIMENSIONS & MAST / REACH:
Length to Fork Face: 113 inches = 9.4’
Overall Width: 53 inches = 4.4’
Overhead Guard Height: 95.3 inches = 7.9’
Mast Lowered Height: 84.6 inches = 7.05’

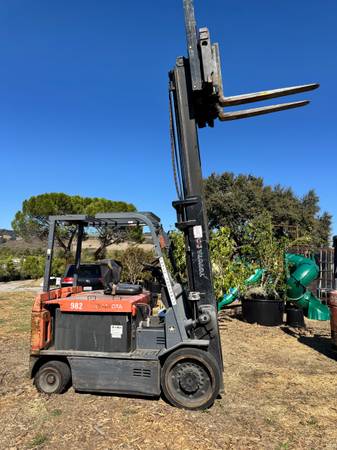

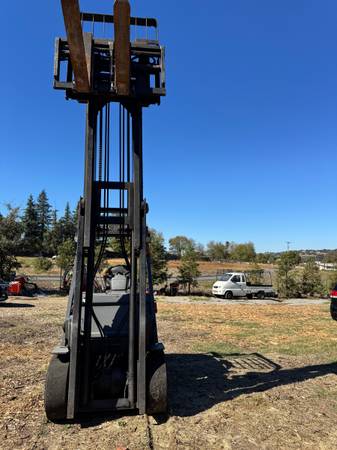

Mast Extended Height/ Mast Fork Height: 15’
Free Lift: 5 inches
Turning radius (outside) 96 inches = 8’
Right-Angle Stack (Aisle Width): 116.9 inches = 9.75’
Everything is working, no leak, run good. Come to San Jose, California to inspect and test drive
I will delete the ad after I sell.
Address: McKean Rd, CA 95120
