HAAS VF-2SS CNC Machining Center, 4th Axis Drive - $33,900 (fremont)
3305 Edison Way
QR Code Link to This Post

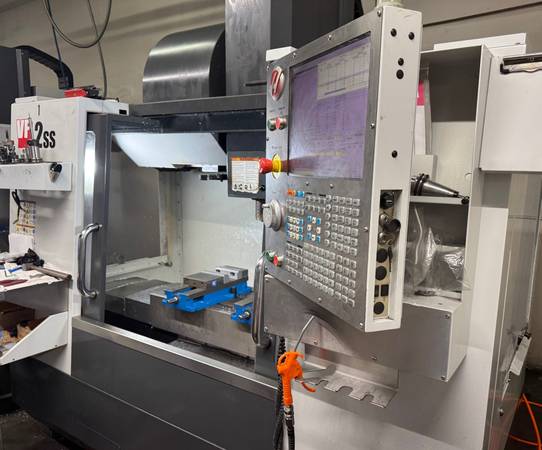

** HAAS VF-2SS VERTICAL MACHINING CENTER **
Year: 2012 / SN:1093383
SPECIFICATIONS:
• TABLE WORKING SURFACE..... 36” x 14”
• TABLE LOAD CAPACITY..... 1,500 LBS.
• TRAVELS X,Y,Z..... 30” x 16” x 20”
• FEED RATES, ALL AXES..... 833 IPM
• RAPID TRAVERSE RATE, ALL AXES..... 1400 IPM
• TOOL CHANGER ARM STYLE..... 24 + 1
• SPINDLE HORSEPOWER..... 30 HP
• SPINDLE SPEEDS RANGE..... 12,000 RPM / Inline Direct Drive
• SPINDLE TAPER..... #CAT-40
• WAY SYSTEM..... LINEAR GUIDEWAY
• OVERALL DIMENSIONS..... 88 in. X 92 in. X 104 in. H
• APPROXIMATE WEIGHT - NET..... 8,000 LBS.
EQUIPPED WITH:
• 4th AXIS DRIVE
• HIGH SPEED MACHINING
• RIGID TAPPING
• CHIP AUGER
• PROGRAMMABLE COOLANT NOZZLE
• REMOTE JOG HANDLE
• COMPENSATION TABLES
• 16 MB MEMORY
• COOLANT TANK with 55 GALLON CAPACITY
PRICE: $33,900.
Offered by the Used Machinery Division of PERFORMANCE MACHINE TOOLS in FREMONT, CA.
NEW & USED Metalworking Machinery Since 1979.
Call or text Rob: 510.760.9518
3305 Edison Way
Fremont, CA 94538
