JD-990 Super JD Synthesizer + Vintage Card + RAM/ROM - $1,595 (redwood city)
QR Code Link to This Post
Cash or PayPal only. Local pickup only.
Roland JD-990 Super JD rack synthesizer module, in excellent condition. I’ve owned this since 2003 and it’s been very lightly used — the display is bright, and overall the unit is extremely well cared for.
What’s Included (full package):
* Roland JD-990

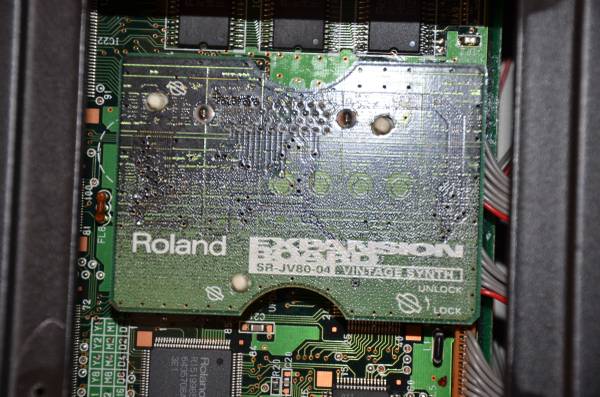

* SR-JV80-04 Vintage Synth expansion card (very rare, highly coveted)

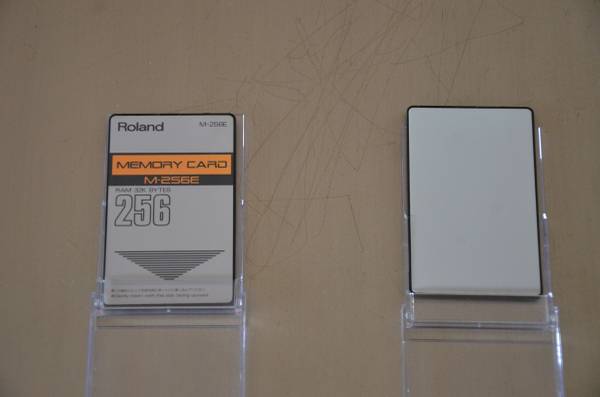

* 2 × M-256E RAM cards (adds more patch memory)

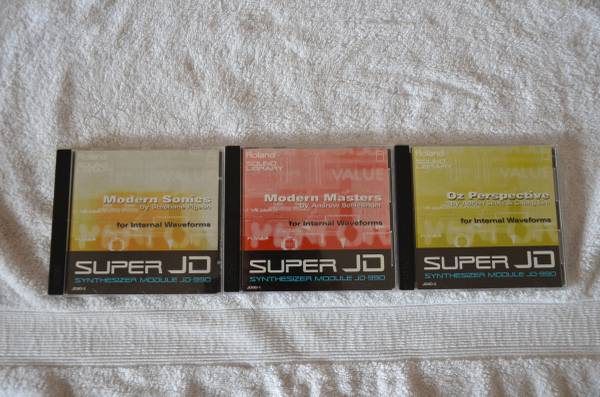

* 3 × ROM cards:
• JD-9D1 (Modern Masters)
• JD-9D2 (Modern Sonics)
• JD-9D3 (Oz Perspective)
* Original manuals (two guides)
* Power cable
If you've ever wanted to own a JD-990, this is the definitive package!
Condition:
* Unit is in great cosmetic shape — no major dings or damage.
* LCD is the original — still bright, no major dimming.
* All functions and expansions work properly.
* Used in my smoke-free / studio environment.
Why this is a rare / powerful bundle:
* JD-990 is already a powerful, 24-voice, multitimbral module.
* The SR-JV80-04 Vintage Synth card significantly enhances its versatility and sound character.
* With 2 RAM and 3 ROM cards, this unit offers much more variety and memory than most JD-990s on the used market.
Selling Because:
I haven’t used it in years, and I’d rather it go to a home where it will be fully appreciated.
Simply put: you won't find a more complete JD-990 package in this condition anywhere else!
FULL TECHNICAL SPECIFICATIONS
=============================
Synthesis Engine
* Type: PCM-based subtractive synthesis
* Polyphony: 24 voices
* Timbrality: 7-part multitimbral (1 “Main” part + 6 “Additional” parts)
Tone Structure:
* Up to 4 tones per patch
Each tone has:
* Waveform (ROM-based PCM)
* Time Variant Filter (TVF): 12 dB/oct or 24 dB/oct resonant low-pass
* Time Variant Amplifier (TVA)
* LFOs: 2 per tone
Effects:
* Multi-effects (over 40 algorithms), including: Chorus, Reverb, 4-band EQ (per Patch Processing)
Memory / Storage
Preset Patches:
* 195 Preset Patches (A + B)
* 65 Performance Presets
User Memory:
* 64 User Patches
* 64 User Performances
Card Slots:
1 × PCM Expansion Slot (SR-JV80 series)
1 × Data Card Slot (M-256E / M-512E)
1 × Waveform ROM Card Slot (JD-800-formatted ROM cards)
Sound Sources
* Onboard Wave ROM: ~6 MB PCM
Waveforms:
* JD-800 wave set + additional JD-990-exclusive waves
* Supports JD-series ROM wave cards
* Supports SR-JV80 expansion cards
Display / Controls
Display: Backlit LCD (large graphic display)
Performance Controls
MIDI receive for: Pitch Bend, Mod Wheel, Channel Pressure (Aftertouch), Polyphonic Key Pressure
MIDI CC modulation sources
Matrix modulation system with multiple assignable sources
Connectivity
Audio Outputs:
* 2 × Main Outputs (L / R)
* 2 × Individual Outputs (Assignable)
* Headphone Output (front panel)
MIDI: MIDI In, MIDI Out, MIDI Thru
Pedal Input:
* Control Pedal jack (assignable)
Programmability
Deep editing via:
* Onboard front panel
* Extensive MIDI SysEx support
Dimensions & Weight
* Width: 482 mm (19 inches)
* Depth: 330 mm (13 inches)
* Height: 89 mm (3.5 inches)
* Weight: ~5.8 kg (about 12.8 lbs)
Release Information
* Introduced: 1993
* Considered the “Super JD,” a module version of the JD-800 with significant feature expansions
