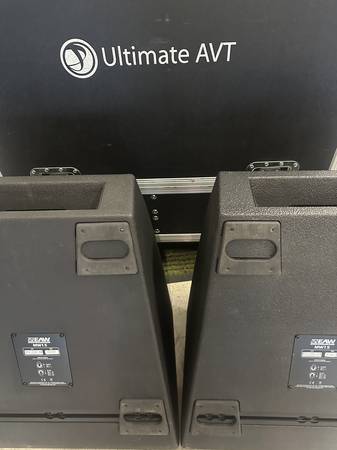

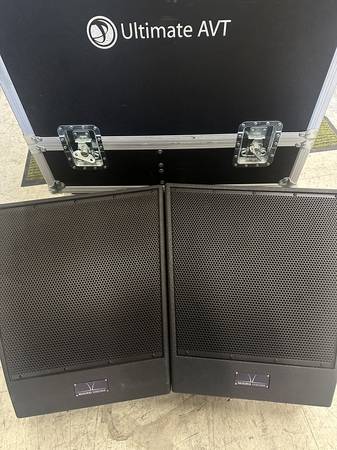

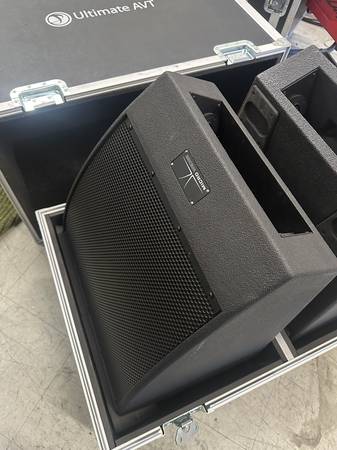

EAW Microwedge MW15 Pair with case - $3,400 (Hayward or RWC)
QR Code Link to This Post
Make offer!
Note that these include standard track rigging points for secure flying options.
Pick up and auditions available in Hayward or Redwood City. Delivery possible in central CA for reasonable fee.
The Factory Marketing:
The EAW MicroWedge MW15 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 15-inch woofer with a 3-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.
All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.

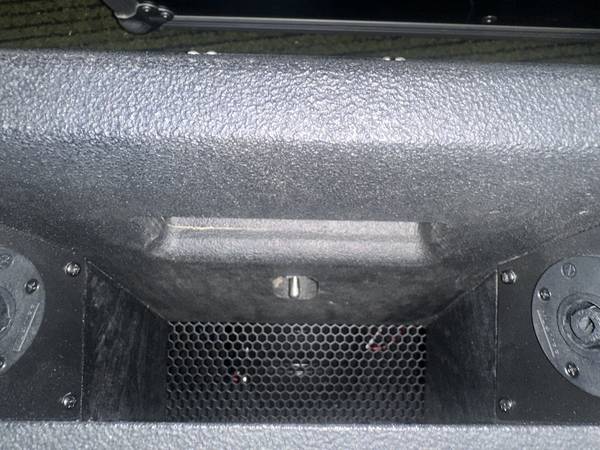

MicroWedge MW15 monitors are processor enhanced (rather than processor dependant) for true “plug and play” operation. User selectable single-amp and bi-amp modes are provided. The large port on the front of the cabinet enhances LF response in coupling with the floor, and this port houses both the carrying handle and the passive/active mode switch. The port also contains dual input connectors, keeping them concealed and protected, and allowing wedges to be placed as close together as desired. Additional cable can be stored in the port without impacting LF performance.
Rubber feet on the bottom of the enclosure reduce abrasion, and new integral rigging hardware – also mounted on the enclosure bottom – facilitates easy flying. The Baltic birch cabinets are protected with EAW’s RoadCoat™ finish that’s extremely durable, and the rugged steel grille keeps its distinctive shape even when stood upon. All components are highly liquid tolerant – virtually impervious to spilled drinks as well as natural elements like rain.
EAW MicroWedge MW15 Features:
Highly coherent coaxial design (15-inch woofer)
Enhanced fidelity and power handling
Upgraded transducers and crossover design

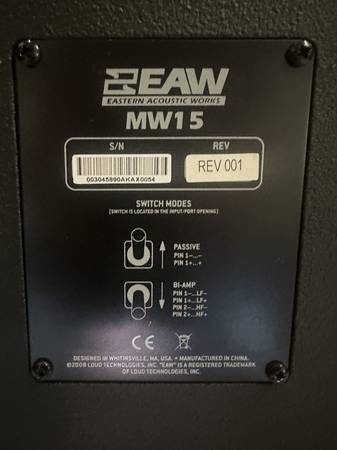

Switchable single-amp/bi-amp modes
Convenient input connector location
6 year warranty from EAW
EAW MicroWedge MW15 Specifications:
Subsystem:
LF: 15-in cone, vented, coaxial with HF
HF: 1x 1.4 in exit, 3 in. voice coil compression driver, Horn-loaded
Operating Mode:
Single-amp LF/HF; Bi-amp LF, HF
High pass filter; DSP w/2-way filters
Operating Range (-10 dB): 62 Hz – 20 kHz
Axial Sensitivity (1W @ 1m):
LF: 97 dB SPL
HF: 106 dB SPL
Full Range: 96 dB SPL
Power Handling / Impedance:
LF: 1000W @ 8 Ohms
HF: 150W @ 8 Ohms
Full Range: 1000W @ 8 Ohms
Calculated Maximum Output Peak:
LF: 133 dB SPL
HF: 134 dB SPL
Full Range: 132 dB SPL
Calculated Maximum Output Long Term:
LF: 127 dB SPL
HF: 128 dB SPL
Full Range: 126 dB SPL
Nominal Coverage:
Horizontal: 90°
Vertical: 90°
Powering (Switchable): Full range or biamplified
Dimensions:
Height (min. stage): 14.10" (357.0mm)
Width (front): 14.75" (374.6mm)
Width (rear): 19.05" (483.9mm)
Depth: 24.17" (614.0mm)
Trap. Angle (degrees per side): 6.5°
Floor (degrees up): 27°
Weights:
Net: 65 lbs (29.5 kg)
