Marvel Ironworker New Machine - $15,000 (Redwood City)
QR Code Link to This Post

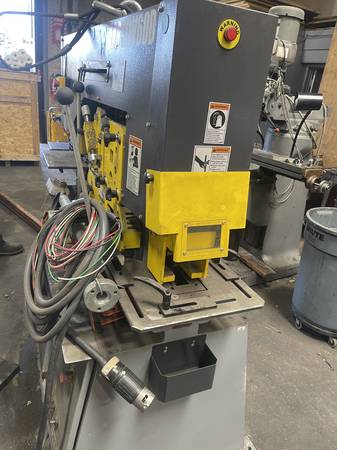

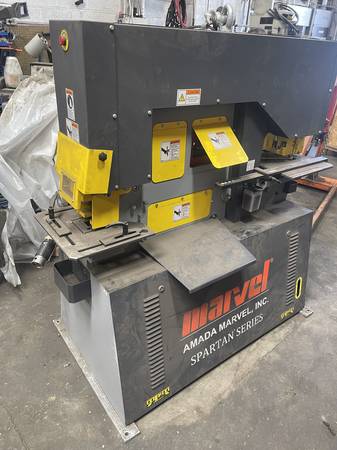

Marvel Spartan MSIW60D heavy-duty, dual cylinder, completely integrated Ironworker with 60 ton capacity, 5 work stations and simultaneous dual operation
Specifications:
Punching:
Punch Pressure: 60 Tons
Standard Tooling: 1 1/2″ in 1/2″
CPD Series: 26 Punch, 62 Die
Large Tooling: 2″ in 3/8″
CPD Series: SP51P Punch, SP80D Die
Optional Oversize Tooling: 4″ in 3/16″ Material
Throat Depth: 10″
Stroke Length: 2 5/16″
Cycles per Minute in 3/4″: 25
Punching Station Work Height: 40 9/16″
Flat Bar Shearing:
Flat Bar Shearing Capacity: 12″ in 1/2″
Max. Width x Thickness: 8″ x 3/4″
Blade Length: 12 1/2″
Angle Flange Trim: 3″
Flat Bar Shear Work Height: 35 3/4″

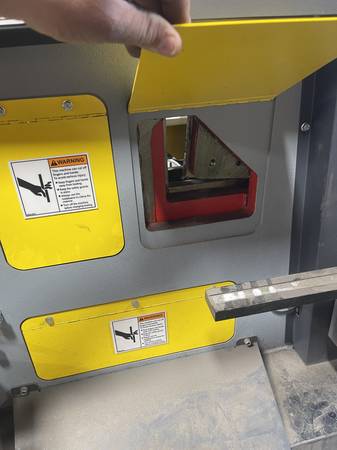

Angle Shearing:
Capacity:
@ 90°: 4″ x 4″ x 1/2″
@ 45°: 2 1/2″ x 2 1/2″ x 3/8″
Angle Shear Work Height: 44 1/2″

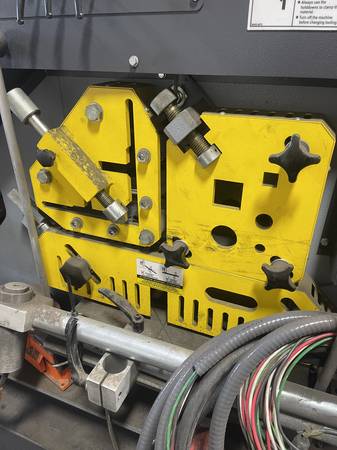

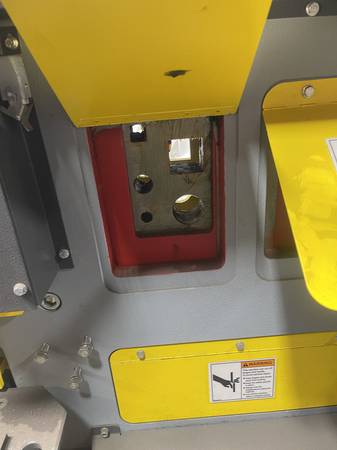

Bar Shearing:
Round Bar Capacity: 1 1/2″
Square Bar Capacity: 1 1/2″ x 1 1/2″
Six Cavity Round and Square Bar Shear Sizes:
Round: 1/2″, 1″, 1 1/2″
Square: 3/4″, 1 1/2″
Max. Channel Shear (Optional): 4″
Max. I-Beam Shear (Optional): 4″
Bar Shear Work Height: 44 1/2″
Notching:
Rectangular Notcher: 1 3/4″ x 3 1/2″ x 3/8″
Notcher Work Height: 35 1/2″
Standard Voltage: 7.5 HP / 230v / 3ph
