Pioneer SA 608 Stereo Amplifier with TX 608 Tuner - $375 (Pacifica)
QR Code Link to This Post

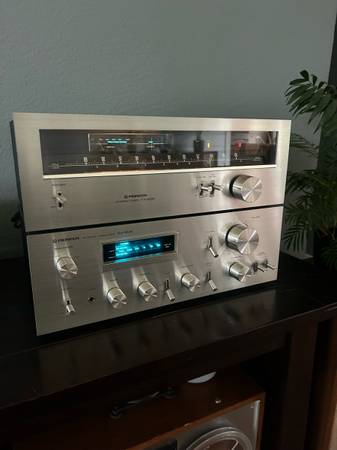

Both of these units are in beautiful condition. They are both fully functional and work perfectly .
Happy to demo to your satisfaction.
Info from Internet:

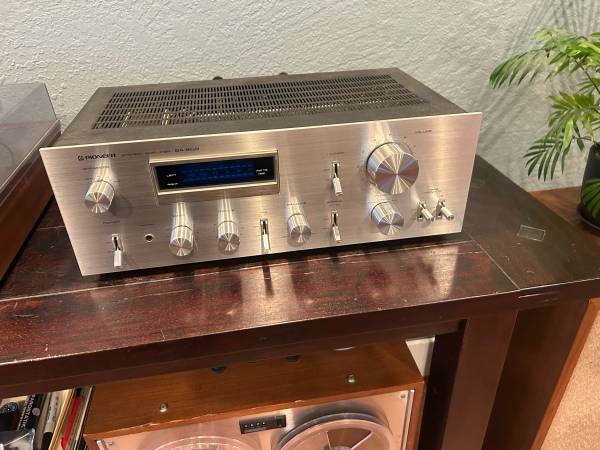

Amplifier
Pioneer SA-608
Description
The Pioneer SA-608 and SA-6800 have the same basic performance.
The major difference is in the appearance, the SA-6800 being fitted with the wooden side cover and top cover, while the model SA-608 employs a metal cover.
Specifications
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.02%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MM), 100dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 7 x IC, 23 x transistors, 17 x diodes
Dimensions: 451 x 151 x 271mm
Weight: 8.3kg
Year: 1979
-TUNER
Pioneer TX-608
AM/FM Stereo Tuner (1979-81)
add a review (3 reviews)
Pioneer TX-608
pioneer tx-608 am-fm stereo tuner pioneer tx-608l front panel
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
Sensitivity: 1.9uV (FM), 300uV (MW)
Signal to Noise Ratio: 74dB (FM), 50dB (MW)
Distortion: 0.15% (FM)
Selectivity: 60dB (FM), 35dB (MW)
Frequency response: 20Hz to 15kHz (FM)
Output: 650mV (FM)
Semiconductors: 3 x IC, 1 x FET, 8 x transistors, 15 x diodes
Dimensions: 451 x 151 x 284mm
Weight: 5.3kg
Year: 1980
