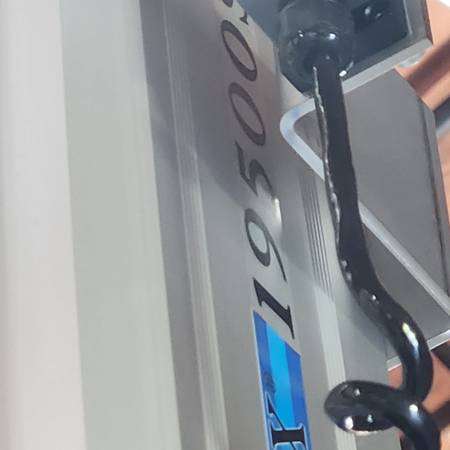

LIFT - O - FLEX Electric Mobil Lifter - $1,000 (Hayward)
QR Code Link to This Post
LIFT-O-FLEX® Heavy Duty Ergonomic Lifter, Series 19000/19500
The LIFT-O-FLEX™ Series 19000/19500 is an adjustable ergonomic lifter with a 350-lbs. (Series 19000) or 500-lbs. (Series 19500) lift capacity
The LIFT-O-FLEX™ Series 19000/19500 is an adjustable ergonomic lifter with a 350-lbs. (Series 19000) or 500-lbs. (Series 19500) lift capacity
The LIFT-O-FLEX™ Series 19000/19500 can lift and turn, move, pour, position and load your coil, spool, drum, bags, box or tote.
The LIFT-O-FLEX™ 19000 series has a lift capacity of 350 lbs. The 19500 series has a lift capacity of 500 lbs.
Both models provide expanded flexibility with a wide variety of interchangeable end effectors/attachments to provide a cost effective solution for your ergonomic lifting requirements.
The LIFT-O-FLEX™ has a wide variety of standard end effectors, attachments, tooling and manipulators available
The LIFT-O-FLEX™ Series 19000/19500, Shown with the Squeeze-O-Turn™ Attachment
The LIFT-O-FLEX™ Series 19000/19500 EEX D, is an Explosion Proof Lifter
LIFT-O-FLEX™ Series 19000/19500 Heavy Duty Ergonomic Lifter Schematic 1
LIFT-O-FLEX™ Series 19000/19500 Heavy Duty Ergonomic Lifter Schematic 2
LIFT-O-FLEX™ Series 19000/19500 Heavy Duty Ergonomic Lifter Schematic 3
PDF CATALOG
TYPE: LIFT-O-FLEX™ Ergonomic LiftersContact an Application Engineer
MODEL: LOF™ 19000/19500 SERIES
The LIFT-O-FLEX™ Series 19000/19500 is an adjustable ergonomic lifter with a 350-lbs. (Series 19000) or 500-lbs. (Series 19500) lift capacity
The LIFT-O-FLEX™ 19000/19500 Series Ergonomic Lifter offers dynamic load handling characteristics for heavy load capacities.
LIFT-O-FLEX
The LIFT-O-FLEX™ is an ergonomic material handling solution that is designed to lift, move, invert and rotate rolls, spools, reels, as well as other products of similar size and shape.
The LIFT-O-FLEX™ has a wide variety of standard end effectors, attachments, tooling and manipulators available. The end effectors, or attachments, are completely interchangeable. This allows for interchangeability between lifters, allowing the user to meet their ergonomic lifting needs while providing flexibility with interchangeable tooling without incurring the cost of a complete replacement.
LIFT-O-FLEX™ and its tooling attachments are available in a powder coated finish, anodized aluminum or stainless steel construction. Wash down versions are available.
Custom options are always welcome, and we will happily work with you to determine a customized LIFT-O-FLEX™ configuration that will provide the best solution for your operation.
1900/19500 Features
LIFT-O-FLEX™ is intended to assist you with lifting loads where a forklift would be considered too heavy and cumbersome.
The 19000 series has a lift capacity of 350 lbs.
The 19500 series has a lift capacity of 500 lbs.
Anodized Aluminum Profiles
Intermediate Sections-Standard and Custom lengths
Lift Masts
Steel (Powder Coated Paint-Optional SS)
Legs-Bolted to Intermediate
Adjustable Handlebar Height
Power Pack Cover
Standard and custom leg configurations and heights
Swivel and fixed casters
Standard and custom length lift masts
Foot operated 3 position central brake system on rear casters
Brake, free wheeling and center lock (trailing)
Lift mast slip clutch on the down movement provides for safe load handling
Current limiting (no limit switches) provide for load limiting and stops
Totally enclosed lift mast w/ball screw for smooth up and down DC powered movement
Electronic power pack can be provided with either standard or heavy-duty batteries
Power packs are also exchangeable allowing for multi-shift operation
Detachable remote controller
Provides the operator with control over load handling functions.
Handlebar is operator adjusted to achieve ergonomic operation
Specifications
Minimum Lift Height: 56mm (~2.2”)
Lift-Speed 19000 Series:100mm/sec (4”/sec)
Lift-Speed 19500 Series: 50mm/sec (2”/sec)
Legs-Standard (Overall Length): Std Length 984mm (38.75”)
Long 1184mm (46.62”)
X-Long 1384mm (54.5”)
Legs:Low Profile (Overall Length) Std Length 961mm (37.84”)
Long 1161mm (45.72”)-X-Long 1361mm (53.6”) Legs
X-Low Profile (Overall Length) Std Length 900mm (35.4”)-Long 1110mm (39.7”)
Wheel Material: Polyurethane/Rubber
Wheel Diameter (Front/Back): Standard 100mm (3.9”)/150mm (5.9”)-Front Single Swivel
Wheel Diameter (Front/Back): Low built 62mm (2.44”)/100mm (3.9”)-Front Dual Swivel
Wheel Diameter (Front/Back): X-Low built 76mm (2.9”)/150mm (5.9”)-Front Fixed Castor
Width: Outside Std-556mm (21.8”)
Wide 680mm (26.7”)
X-Wide 858mm (33.4”)
Noise level: >70dB(A)
Maximum Load 19000 Series: 160Kg (350-lbs)
Maximum Load 19500 Series: 225Kg (500-lbs)
Lifter Weight w/o End-Effector: 90Kg (198-lbs)
Battery Type: Lead Gel Cell
Battery Voltage: 24V, 2 Amp
Battery Capacity: 7.2 AHr
Recharge Time: 6-8 Hours
Finish: Powder Coated Paint/Anodized or Stainless Steel/Anodized
