Miller syncrowave 210 - $3,500 (san rafael)
Sao Augustine wy
condition:
like new
make / manufacturer:
Miller
model name / number:
Syncrowave
size / dimensions:
38/3612
QR Code Link to This Post

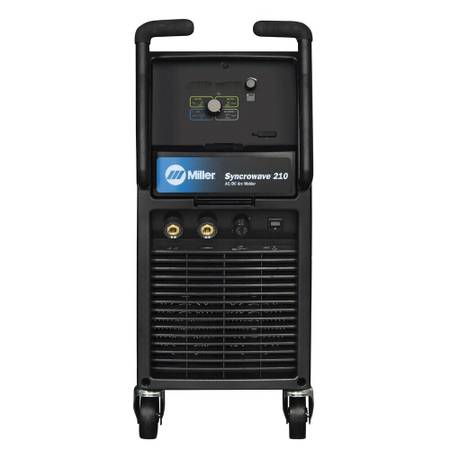

Syncrowave 210
Quick Specs
Light Industrial Applications
Light metal fabrication
Maintenance/repair operations
Light manufacturing
Automotive repair
Vocational training
Hobbyist
Processes
AC/DC TIG (GTAW)
DC stick (SMAW)
Pulsed TIG (GTAW-P)
MIG (GMAW)*
Flux-cored (FCAW)*
*With Spoolmate 150.
Issued March 2021 • Index No. AD/4.6
TIG/Stick/ MIG
Welding Power Source
Input Power 120-240 V, 1-phase power
Amperage Range 5-210 A
Rated Output 125 A at 15 V, 60% duty cycle Net Weight TIG/stick only: 133.5 lb. (61 kg)
TIG/MIG Complete: 139.5 lb. (63 kg)
WIRELESS
COMPATIBLE
Easy to use.
1. Turn power on.
2. Select process: AC TIG, DC TIG, DC stick or MIG (spool gun).
3. Set amperage or voltage based on material thickness.
Then weld! It's easy as 1,2,3.
Pro-Set™ (TIG/stick) eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
AC balance (TIG) control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds.
Pulse (TIG). Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.
DIG (stick) control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010.
Auto-Set™ (MIG) automatically sets your welder to the proper parameters. Simply set the wire size, material thickness, and shielding gas and you're ready to weld with the Spoolmate™ spool gun.

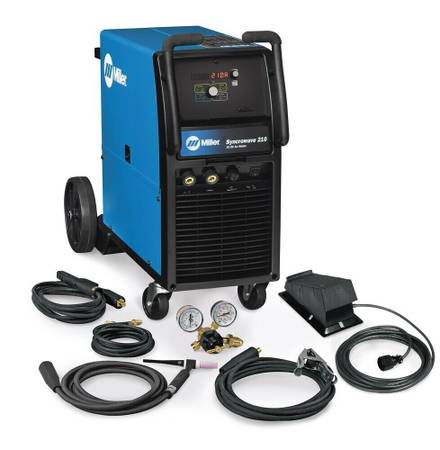

Syncrowave 210
TIG/stick only package shown.
TIG/stick only package comes with:
• Power source with 10 ft. (3 m) power cord and MVP™ plugs for 120 V and 240 V
• Weldcraft" A-150 (WP-17)
12.5 ft. (3.8 m) TIG torch with Dinse-style connector
• Electrode holder with Dinse-style connector
• Work clamp with 12 ft. (3.7 m) cable and Dinse-style connector
• RFCS-14 HD foot control with 20 ft.
(6 m) cord (194744)
• Flow gauge regulator with hose
• Factory-installed running gear with EZ-Change™ low cylinder rack
• Quick-reterence guide
TIG/MIG Complete package includes above plus:
• Spoolmate™ 150 spool gun
• 4-14 pin connector = Flow-thru Dinse-style connector
Multi-voltage plug (MVP") allows for connection to 120 or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connecting it to the power cord.
Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
AUTO-LINE
TECHNOLOGY
Allows for any input voltage hookup (120-240 V) with no manual linking, providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
Update and expand. Front panel memory card data port provides the ability to easily update software and expand product features.
Visit MillerWelds.com/TIGSoftware for the latest software updates and expansions.
Low power draw. Inverter-based power source provides full welding output from 240 volts while drawing less than 30 amps.
TRUE BLUE
