100kW 120/240 1Phase Liquid-Cooled Generator brand new full warranty - $36,689 (santa rosa)
QR Code Link to This Post

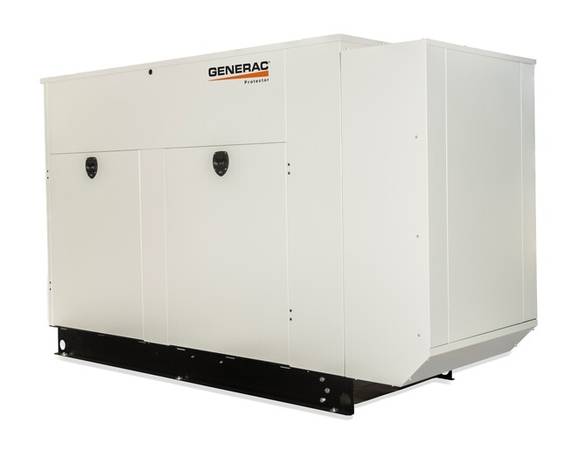

RG10090AVAC - Protector Gaseous 100kW 120/240 1P Liquid-Cooled Generator, California Compliant Catalyst, Vapor Propane (Not field Convertible to natural gas). I have this in stock. If you place a new order for one right now Generac estimates it to ship in 19 weeks. Why wait? I have one ready to go!
Specs Dimensions. 110.6L x 39.5W x 69.3H.
STANDARD FEATURES
• Evolution™ Controller
• Cellular Connectivity for Mobile Link® and Fleet1
• Quiet Operation
• Corrosion Resistant Aluminum Enclosure
• 5 Year/2,000 Hour Limited Warranty
• High Motor-Starting & Surge Capacity
• ±1% Digital Voltage Regulation
• <5% Total Harmonic Distortion Power Quality
• Model-Specific Fuel - Propane or Natural Gas
• EPA Emissions Certified
• CA & MA Emissions Compliant
• UL 2200 Listed
1 - Cellular service for the US, Canada, and other supported countries using the Generac Generator Connectivity Accessory, Cellular (GGCAC).
OPTIONAL FIELD-INSTALLABLE FEATURES
Available as field-installable kits.
• Push-Button Emergency Stop
• Cold Weather Operation Heaters
FEATURES
INNOVATIVE DESIGN & PROTOTYPE TESTING are key components of Generac’s success in “IMPROVING POWER BY DESIGN.” But it doesn’t stop there. Total commitment to component testing, reliability testing, environmental testing, destruction and life testing, plus testing to applicable CSA, NEMA, EGSA, and other standards, allows you to choose GENERAC POWER SYSTEMS with the confidence that these systems will provide superior performance.
MOBILE LINK® CONNECTIVITY: Standard cellular connectivity included with every RG generator. Mobile Link Wi-Fi allows users to monitor the generator set status from anywhere in the world using a smartphone, tablet, or PC. Easily access information such as the current operating status and maintenance alerts. Users can connect an account to an authorized service provider for fast, friendly, and proactive service. With Mobile Link, users are taken care of before the next power outage.
TRUEPOWERTM ELECTRICAL TECHNOLOGY: Superior harmonics and sine wave form produce less than 5% Total Harmonic Distortion for utility quality power. This allows confident operation of sensitive electronic equipment and micro-chip based appliances, such as variable speed HVAC systems.
SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION. This
state-of-the-art power maximizing regulation system is standard on all Generac models. It provides optimized FAST RESPONSE to changing load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torque-matching the surge loads to the engine.
SINGLE SOURCE SERVICE RESPONSE from Generac’s extensive service network provides parts and service know-how for the entire unit, from the engine to the smallest electronic component.
GENERAC TRANSFER SWITCHES: Long life and reliability are synonymous with GENERAC POWER SYSTEMS. One reason for this confidence is the Generac product line is offered with its own transfer systems and controls for total system compatibility.
GENERATOR OUTPUT
Voltage PROPANE NATURAL GAS
Power (kW) Current (A) Power (kW) Current (A)
120/240 V
1-Phase 96 400 96 400
208/120 V
3-Phase 100 347 96 333
240/120 V
3-Phase 100 300 96 288
480/277 V
3-Phase 100 150 96 144
Emergency Standby Power (ESP) Rating: Standby ratings apply to installations served by a reliable utility source. The ESP rating is applicable to varying loads for the duration of a power outage. The average power output over 24 hours shall not exceed 70% of the ESP rating.
ALTERNATOR SYSTEM
Circuit Breaker (CB) Size (A) 120/240 V 1-Phase 400
208/120 V 3-Phase 400
240/120 V 3-Phase 350
480/277 V 3-Phase 175
Alternator Type Synchronous
Rotor Insulation Class H
Stator Insulation Class H
Telephone Interference Factor (TIF) <50
Bearings Sealed Ball
Coupling Flexible Disc
Excitation System Synchronous Brushless
Total Harmonic Distortion <5%
VOLTAGE REGULATION
Type Digital
Sensing All Phases
Regulation ±1%
SURGE CAPACITY
ENGINE SYSTEM
Make Generac
Model 9 L, V-type 8-Cylinder, Naturally Aspirated
Compression Ratio 9.9:1
Lifter Type Hydraulic
Oil Pump Type Gear
Oil Filter Type Full Flow Spin-on Cartridge
Crankcase Capacity (qt (L)) 10.5 (9.9)
Temperature Derate 3.3% per 10 °F above 77 °F
(3% per 5 °C above 25 °C)
Altitude Derate 3% per 1,000 ft above 600 ft
(1% per 100 m above 183 m)
Exercise Speed (rpm) 1,500
Operating Speed (rpm) 1,800
GOVERNOR
Type Electronic
Frequency Regulation Isochronous
COOLING SYSTEM
Coolant 50/50 (50% Ethylene Glycol)
Coolant System Capacity (US gal (L)) 5.5 (20.8)
Water Pump Type Belt Driven
Fan Type Belt Driven
Fan Quantity 1
Exhaust Flow at Rated Output (cfm (m3/min)) 771 (21.8)
Maximum Ambient Air Temperature (°F (°C)) 122 (50)
FUEL SYSTEM
Surge Amps at <0.4 Power Factor 30% Voltage Dip (A)
120/240 V 1-Phase 854
208/120 V 3-Phase 430
240/120 V 3-Phase 372
480/277 V 3-Phase 244
Generator Specifications
FUEL CONSUMPTION
Rated Load LIQUID PROPANE NATURAL GAS
(US gph) (L/h) (cfh) (m3/h)
25% 4.6 17.3 393 11.1
50% 7.0 26.4 600 17.0
75% 9.9 37.4 854 24.2
100% 13.3 50.5 1,154 32.7
Propane - 91,452 BTU/US gal (25.5 MJ/L); 36 ft3/US gal (0.27 m3/L); 2,516
BTU/ft3 (93.7 MJ/m3); 4.24 lb/US gal (0.508 kg/L) Natural Gas - 1,036 BTU/ft3 (37.3 MJ/m3)
See emissions data sheets for maximum fuel flow for EPA and SCAQMD permitting purposes
ELECTRICAL SYSTEM
System Voltage (V) 12
Charge Alternator (A) 35
Battery Charger (A) 2.5
Recommended Battery (included) Group 31, 925 CCA Minimum
ENCLOSURE
Sound Level at Operating Speed & No Load (dB(A) @ 23 ft (7 m)) 71
Color Bisque
CONTROLLER FEATURES
Multi-Lingual English, French, Spanish, and Portuguese
OFF Stops unit. Power is removed. Control and charger still operate.
Programmable Start Delay Between 10 – 30 Seconds Standard 10 sec
Engine Warm-up 5 sec
Starter Lock-out Starter cannot re-engage until 5 sec after engine has stopped.
Automatic Voltage Regulation with Over and Under Voltage Protection Standard
Overspeed Shutdown Standard, 72 Hz
Overcrank Protection Standard
Failure to Transfer Protection Standard
50 Event Run Log Standard
Incorrect Wiring Protection Standard
Common External Fault Capability Standard
Contact your authorized Generac Master Dealer Mike McPherson call or text 707-332-0703
