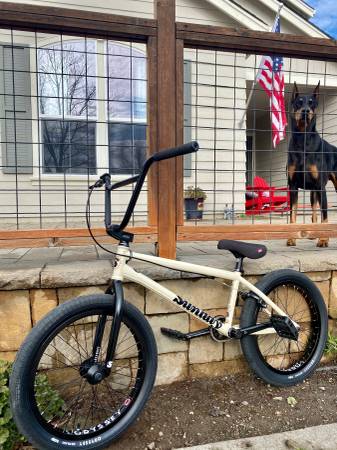

BMX BIKE - Sunday - $800 (santa rosa)
bicycle type:
bmx
wheel size:
20 in
bicycle frame material:
other/unknown
suspension:
none (rigid)
brake type:
cantilever
electric assist:
none
condition:
excellent
make / manufacturer:
Sunday
model name / number:
Soundwave Special
QR Code Link to This Post
* 100% aftermarket
* 41-Thermal® Lifetime Warranty on Frame, Fork, Bars, and Cranks
* Sunday Soundwave v3 Frame
* Sunday Darkwave Forks
* Odyssey Super Highway Bars
* Odyssey Thunderbolt Cranks
* Odyssey Utility Pro Sprocket
* Odyssey Hazard Lite Rims
* Odyssey Clutch Pro Freecoaster
* Odyssey Path Pro Tires
* Right Hand or Left Hand Drive
Specifications
Frame:
Sunday Soundwave v3, 21" top tube, 100% chromoly aftermarket frame, 41-Thermal® lifetime warranty, removable brake hardware
Fork:
Sunday Darkwave, 20", 100% chromoly aftermarket fork, 41-Thermal® lifetime warranty, 28mm offset
Handlebar:
Odyssey Super Highway, 100% chromoly aftermarket, 2-piece
Stem:
Sunday Freeze top load, 48mm
Headset:
FSA integrated conical, 1-1/8"
Alloy Cap:
Sunday aftermarket, aluminum
Brake Lever:
Odyssey Monolever
Brakes:
Odyssey Springfield U-brake
Brake Cable:
Odyssey Quik Slic
Grips:
Odyssey BROC
Seat:
Odyssey Slugger Stitch, Pivotal
Seat Post:
Odyssey Pivotal
Seat Clamp:
Sunday aftermarket
Sprocket:
Odyssey Utility Pro, 25T with plastic guard
Cranks:
Odyssey Thunderbolt+, 170mm, 100% chromoly, 41-Thermal® lifetime warranty, LHD or RHD
Bottom Bracket Parts:
Sealed, Mid, 22mm
Pedals:
Odyssey Twisted PC Pro
Rims:
Odyssey Hazard Lite, 20", 36H
Front Hub:
Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub:
Odyssey Clutch Pro Freecoaster, 36H, 14mm female axle with 9T driver, plastic guards
Spokes:
14g steel, black
Tires:
Odyssey Path Pro, aftermarket, 20 x 2.4" (Front & Rear)
Chain:
KMC Z1 eHX-W
Approx. Weight:
23.41 lbs (brakeless)
Frame Geometry
Top Tube Length: 21"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2" – 13.5"
Bottom Bracket Height: 11.5"
Standover: 9"
Handlebar Geometry
Rise: 9.5"
Width: 29"
Backsweep: 11°
Upsweep: 1°
