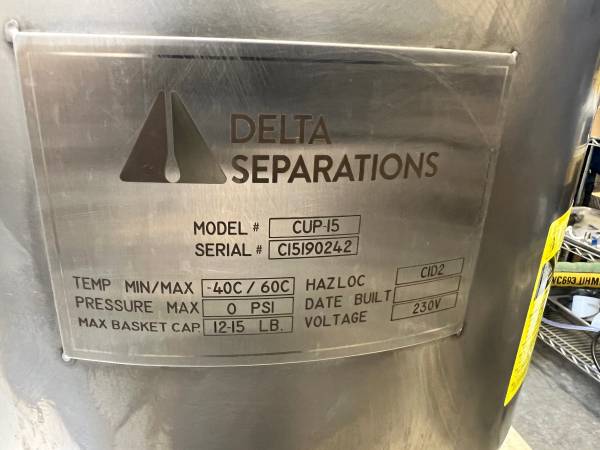

Delta Separations CUP-15 Ethanol Centrifuge System - UL Listed - $30,000 (santa rosa)
condition:
good
make / manufacturer:
Delta Separations
model name / number:
CUP 15
size / dimensions:
8'w x 4'd x 5'h <---footprint
QR Code Link to This Post
Condition: Gently used and in excellent working condition. Includes two transfer kegs and hoses and adaptors.
Free pickup in Santa Rosa, CA or will crate and ship via standard freight for additional fee.
Asking $30,000 or best offer
About the CUP Series Ethanol Extraction System
The CUP Series (CUP-15 ) delivers the ability to extract and target compounds from a variety plant materials. The Centrifuge Utility Platform (CUP) combines closed-loop, alcohol extraction with mechanical centrifugation ensuring a high-purity, consistent extraction. This extraction technology can target specific plant compounds through programmable sequences, effectively isolating the desired separation.
Boasting a 97% alcohol removal from biomass, the CUP systems streamline production times and maximize extraction yield. Designed and built in northern California, Delta Separations is taking US craftsmanship to the next level.
The NEW 2020 CUP Series alcohol extraction system (patent pending) is now fully UL/CUL 1389, PSI reviewed, and ISO 9001 certified. This makes the CUP Series the first US-manufactured extraction equipment to adhere to these respected industry-wide standards.
What do these certifications mean to you–our customer?
They reduce business risk by expediting approval by your local AHJ (Authority Having Jurisdiction) to help get your lab up and running fast. But more importantly, certifications and industry standards also ensure the safety of your facility and staff.
ISO 9001
Quality Management System of Delta Separations, LLC has been assessed by NSF-ISR and found to be in conformance to the following standard(s): ISO 9001:2015 for manufacturing and assembly of chilling ethanol extraction equipment.
DELTA SEPARATIONS CERTIFICATION
Certificate Number: C0538928-IS1
UL Component Recognition means that UL has evaluated components or materials intended for use in a complete product or system.
SYSTEMS CERTIFIED
CUP-15 (2019)
CUP-30 (2019)
UL Component Recognition means that UL has evaluated components or materials intended for use in a complete product or system.
Speed of Processing
Runtime for CUP-15 is 15 minutes, allowing operators to process up to 300 pounds of material in a standard eight-hour shift. With the touch of a button, the automated program menu runs the cycle to the user’s specifications.
The CUP Series Provides Accurate Control over Critical Extraction Variables
Basket RPM
Controlled alcohol residence time
Controlled basket RPM speed
Cycle Agitation Strength
Spray Wash Stripping
Plant Material Drying
Temperatures
Ethernet Connection (IoT compatibility)
Data Logging

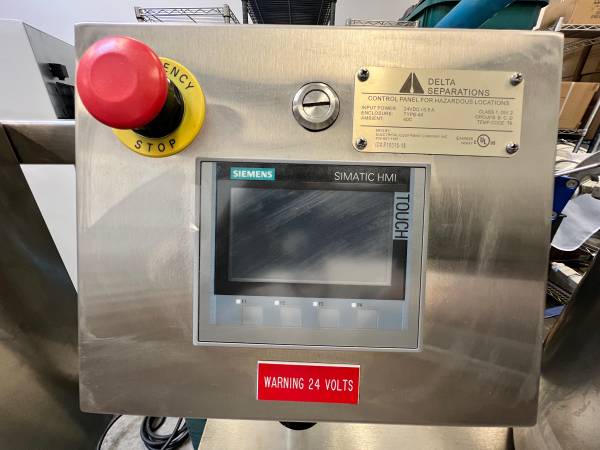

Manual and Automatic Cycle Programming
Min/Max Parameters
System Troubleshooting
Cycle Tracking
Administrative Functions
CUP-15 Specifications
Production Capacity
8-14 pounds* (3.6-6 kilograms) of Plant Material Per Batch
*Depending on mill size
Avg. Run Time: 10 – 20 Min*
*Depending on SOP
Approx: 300 pounds (136 kilograms) Processing Per 8 hr Shift
Alcohol Requirement: 12-13 gallons (45-49 liters) per run
CUP-15 Spec Sheet
Standard on both CUP-15 and CUP-30
Closed-Loop system
Designed for single operator
Easy material loading / unloading
Controlled alcohol residence time
All wetted parts are 304 and 316L sanitary stainless steel
Vacuum jacketed insulation
Alcohol feed port with 1.5” tri-clamp fittings
Vapor tight (no pressure) vessel with EPDM lid seal
2” Tri-Clamp Angled Drain
Low temperature rating to -40c
3rd Party Engineer Reviewed by PSI
UL certified electronics [C1D2] U.S. / Canada
Learn more about Ethanol Extraction
All plants, such as, produce an essential oil. In order to access this oil, usually a solvent is utilized to separate the oil from the plant matter. Ethanol alcohol allows extractors to concentrate the plant oil into a more refined end-product, which can then be used by itself or infused into foods or topicals.
Ethanol AKA alcohol (a colorless volatile flammable liquid) is an ideal solvent for the extraction processes because it’s a polar solvent that easily mixes with water and dissolves water soluble molecules such as chlorophyll, but also has the ability to dissolve many other, non-polar compounds, such as cannabinoids. Ethanol is also readily available and cost effective. Using the proper ethanol extraction equipment, thousands of pounds of and other plant products per day can be efficiently extracted.
Ethanol extraction is a process that can be done under either warm, cold, or room temperature conditions depending on your desired end-product.
For warm or room temperature ethanol extraction, the ethanol is used to quickly wash the plant material which gives a full spectrum concentrate.
For cold ethanol extraction, an industrial extraction chiller can be used to provide chilled ethanol to perform the extraction. Cold ethanol extraction is best suited for producing concentrated cannabinoid distillates and isolates because it does not extract water soluble compounds like chlorophyll as easily.
Is Ethanol Safe for CBD Extraction?
Ethanol itself can be a dangerous chemical due to its highly flammable properties. However, using ethanol to extract CBD from hemp is a safe process if high-quality extraction equipment is used. Premium extraction equipment evaporates out all the ethanol, leaving negligible amounts behind in the product. In addition, new solvent recovery processes allow up to 98% of the ethanol to be recovered and re-used for future extractions.
While ethanol extraction does have its risks, when compared to other extraction methods ethanol is arguably the safer process. Hydrocarbon extraction (using butane or propane as a solvent to extract the plant materials and then heating the mixture to evaporate the solvent, leaving behind an extract), and CO2 extraction (subjecting carbon dioxide to high pressures until it becomes a fluid, extracting the plant material with this fluid, and then returning the CO2 to a gas phase to separate the extract) carry more risks and take longer to learn.
