Shaper Origin S01-NN Handheld CNC Router - $2,200 (walnut creek)
QR Code Link to This Post
1st Gen (SKU: #SO1-NN-SW1-AA)
Includes all accessories:
Shaper Origin with Shaper SM-1 Spindle
Tanos Systainer
⅛-inch upcut spiral cutter
¼-inch upcut spiral cutter
60° engraving cutter
Two rolls of ShaperTape (150-ft each)
Tool change accessories
USB flash drive
Universal dust collection adapter
Input Power
120VAC, 60Hz. 7A
Spindle Motor
720W brushed AC motor
10,000 - 26,000 RPM with load-compensating speed control
Soft-start, over-temperature and over-load safety cut-offs
Produced by Festool to Shaper specifications
Collet
Includes a ¼” collet that accepts any commonly available ¼” shank router bits
⅛” collet sold separately, available from Shaper
Depth Control
43mm (1.7”) of total Z-axis travel
Digitally adjustable depth-of-cut
Automated touch-off sensor
Dust Extraction Port
Designed with the SM-1 spindle to provide optimal debris extraction
34mm inner diameter by 39mm outer diameter port dimensions
Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein)
Includes a 6.5’ adaptor hose with a 2 ¼” OD nozzle for use with US-standard wet/dry vacs
Connectivity
Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates
USB port allows easy offline transfer of design files
Touch Screen
Capacitive multi-touch full-color LCD
Dimensions
Origin: 13 ¾” (handle-to-handle) x 7 ¾” x 11 ¾”

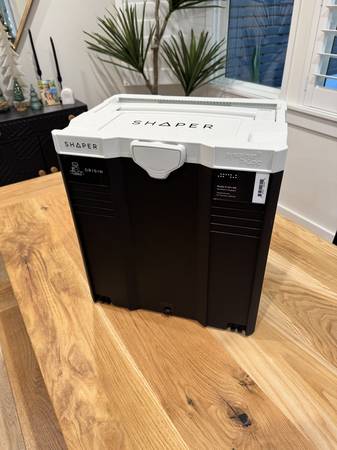

Systainer: 15 ½” x 11 ½” x 17” (SYS 5 T-LOC Systainer)
Weight
Origin: 14.5 lbs
Packaged (with accessories) in Systainer: 23.5 lbs

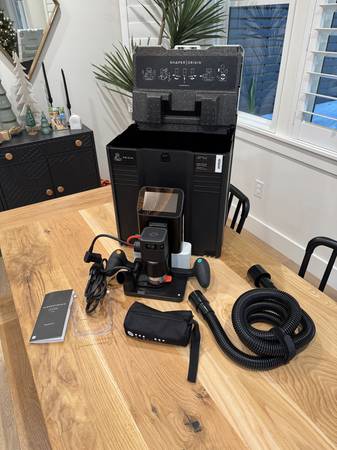

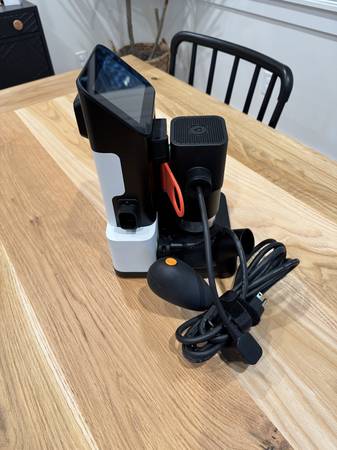

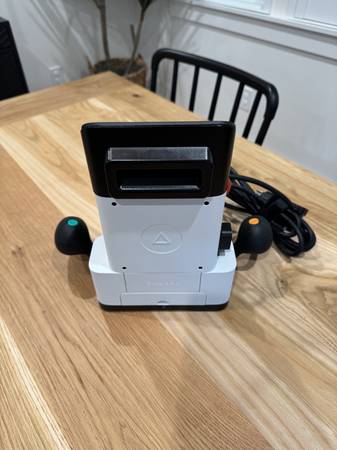

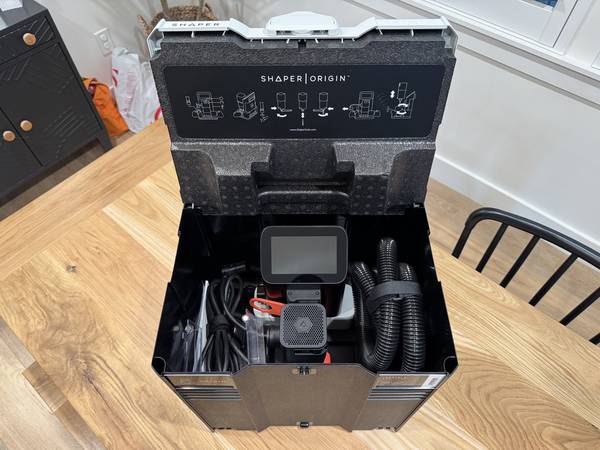

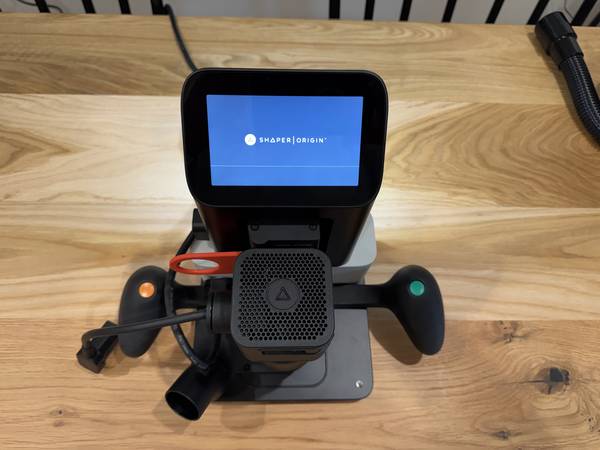

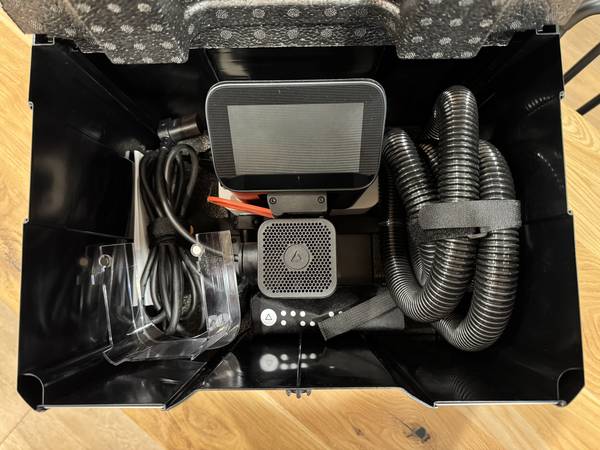

This is virtually brand new, cared for like it's a child, as you can see from the condition in the photos.
