CADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine - $5,500 (fremont / union city / newark)

‹ image 1 of 20 ›

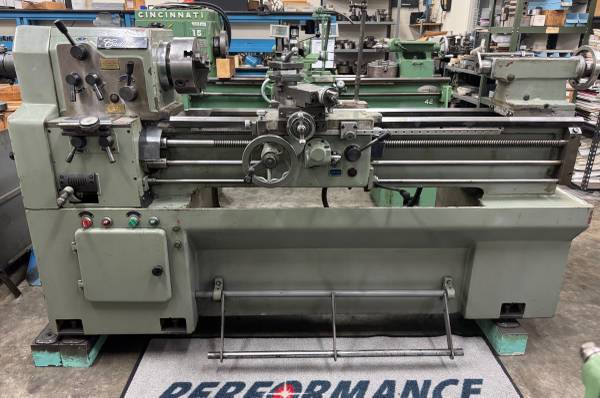

CADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 1
CADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 1 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 2 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 3 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 4 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 5 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 6 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 7 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 8 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 9 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 10 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 11 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 12 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 13 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 14 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 15 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 16 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 17 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 18 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 19 thumbnailCADILLAC 14″ x 40″ ENGINE Lathe, metal cutting machine 20 thumbnail
3305 Edison way

google map

condition: good
make / manufacturer: CADILLAC
model name / number: 1440

more ads by this seller

QR Code Link to This Post

** CADILLAC 14″ X 40″ ENGINE LATHE **
S/N 059448 / YR. 1970S

SPECIFICATIONS
MODEL: 1440
SWING OVER BED: 14 "
DISTANCE BETWEEN CENTERS: 40 "
SPINDLE BORE: 1-17/32" (APPROX. 1.53")
SWING OVER CROSS SLIDE: 8.25"
SPINDLE SPEEDS: (8 SPEEDS) 83, 155, 275, 550, 1020, 1800 RPM
TAPER OF SPINDLE BORE MT NO. 5
LONGITUDINAL FEEDS (32) .0014 TO .0202
CROSS FEEDS (32) .0012 TO .0175
THREADS INCH (32) 4 TO 58 TPI
CROSS SLIDE TRAVEL 9-1/4"
COMPOUND REST TRAVEL 4-1/2"

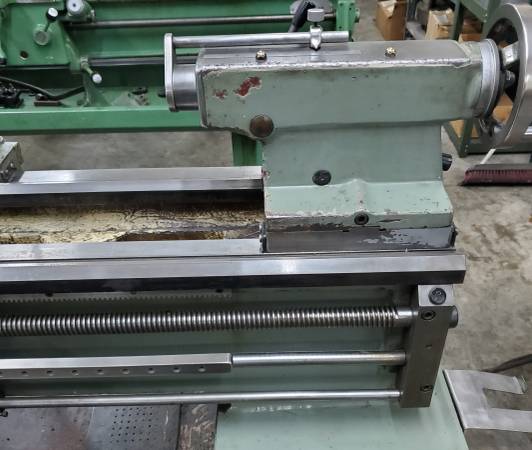

TAILSTOCK QUILL TRAVEL 5-3/4"
TAILSTOCK TAPER MT NO. 4
POWER: 3 HP
VOLTS 220 / 440
PHASE 3
APPROX. WEIGHT: 2,650 LBS
DIMENSIONS: 83" L X 33" W X 45" H


INCLUDES:
5C COLLET CLOSER (MACK)

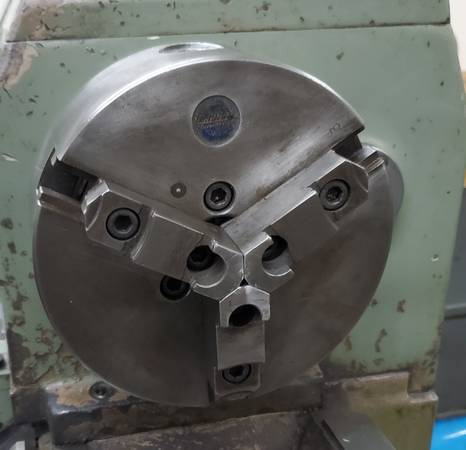

8" 3-JAW CHUCK (CADILLAC)
COOLANT PUMP, CHIP PAN, FOOT BRAKE,SPLASH GUARD
INCH/METRIC THREADING CAPABILITY
TOOL POST (4 WAY)

Price: $5,500

Inspect here under power.

*** we have other lathes here in stock to choose from. let us know the size you are looking for.

Offered by the Used Machinery Division of PERFORMANCE MACHINE TOOLS. New and Used Metalworking Machinery Since 1979.

Other Brands: Acra,

Let us know if you have any questions. Call or email us today.

Thank you - Rob / 510-760-9518 / text also works good.

3305 Edison Way
Fremont, CA 94538
