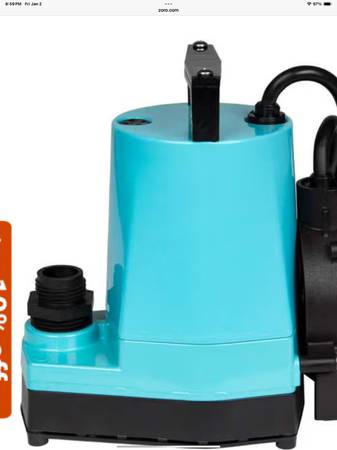

Subversive pump - $100 (vallejo / benicia)
condition:
excellent
make / manufacturer:
Little giant pump
QR Code Link to This Post
Dimensions
Cord Length 10 feet
Width at Widest Point 7 1/2 in
Discharge Dia. 1 in
Overall Height 8 1/8 in
Body Diameter 4 3/8 in
Sump Pit Diameter - Minimum 8 in
Discharge Internal Diameter 1 in
Operating Water Depth - Minimum 1/2 in
Solids Diameter - Maximum 1/16 in
Depth Pumped - Minimum 1/16 in
Details
Power Source Corded Electric
HP 1/6
Switch Actuation Diaphragm
Body Material Cast Aluminum
Max. Head 26 ft
Impeller Material Nylon
Shaft Seal Material - Pumps Fluoroelastomer
RPM 3,450 RPM
Agency Compliance cULus
Amps 2 AC A
Item Plug-In Utility Pump
Series 5-ASP
Hz 60 Hz
Max. Liquid Temp. 120 Degrees F
Includes 3/4 in GHT
Phase Single
Discharge Gender Female
Duty Cycle Continuous
Flow Rate @ 20 Ft. of Head 8.8 gpm
Flow Rate @ 10 Ft. of Head 19.85 gpm
Rated Voltage 115V AC
Discharge 1 in FNPT
Flow Rate @ 5 Ft. of Head 23.25 gpm
Discharge Standard NPT
Standards cULus
Frequency 60 Hz
Liquid Temperature - Maximum 86 Degrees F
Motor Housing Material Aluminum
Feet of Head - Maximum 26 ft
For Media Type Clear Water
Flow Rate - Maximum 25 gpm
Rotation Speed - Maximum 3,450 RPM
Current 2.00 A
Flow Rate @ 5 ft of Head 23.3 gpm
Shaft Seal Material Fluoroelastomer
Flow Rate @ 10 ft of Head 19.9 gpm
Horsepower 1/6 hp
Volute Material Nylon
