Philips Lightolier C-Plus Recessed Downlight - $10 (dublin / pleasanton / livermore)
QR Code Link to This Post

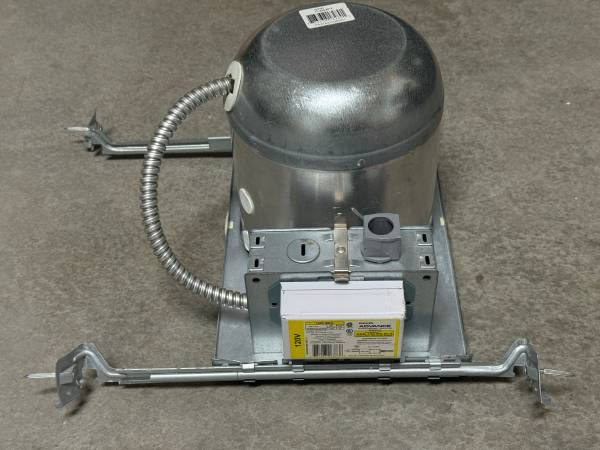

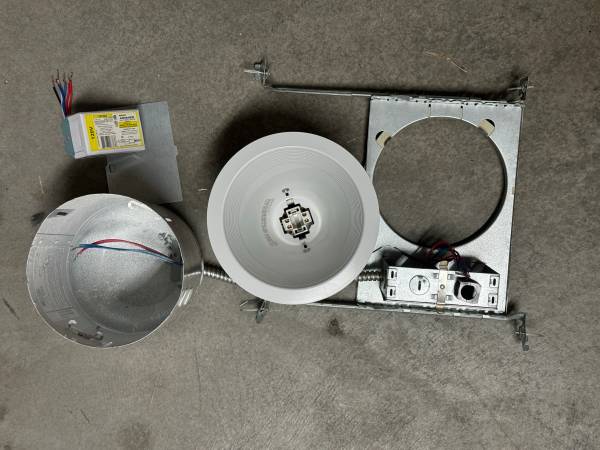

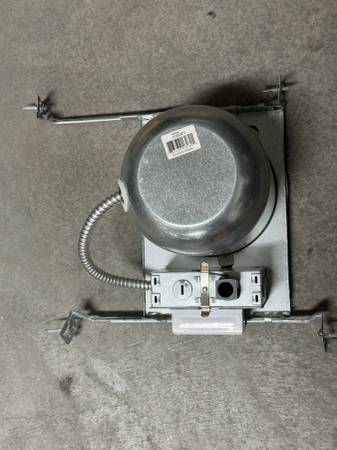

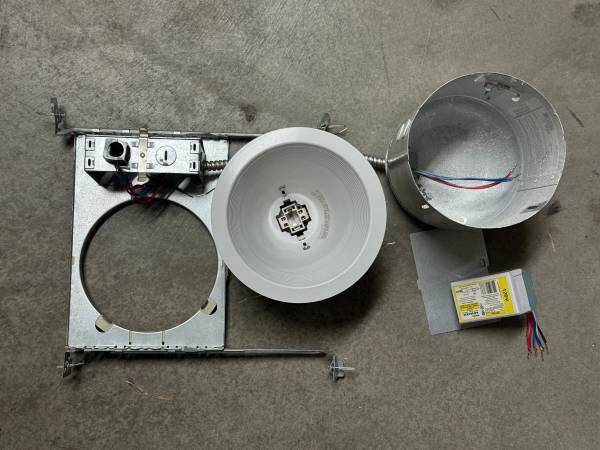

6" CFL CPlus Recessed AirSeal™/IC Rated Vertical- Socket Supporting Downlight
• Ballast - NE1 electronic ballast 120V, normal power factor
• Bar Hanger - Pre-Installed BH-1 bar hangers telescope from 10.5 to 25 inches. Alignment holes to center fixture are located at 10.5" and 25" centers. Bar hanger is equipped with heavy-duty fluted nails. Interlocking support tabs provide smooth adjustment on bar hangers.
• Plaster Frame - Precision die-stamped plaster frame of galvanized steel. Mounting frame accommodates ceiling materials from 1/2" to 1-3/8" thick.

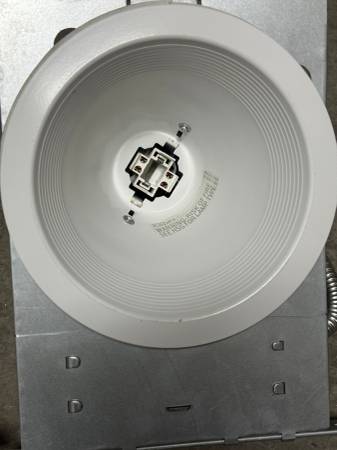

• Reflector - Reflectors include universal feature allowing trim to be used on Phlips Lightolier CPlus Title 24 IC/Airseal rated high efficacy compact fluorescent downlights and select Philips Lightolier incandescent 6 inch IC/AirSeal™ rated downlights.
• Baffle - Precision spun .04 aluminum with deep grooves to reduce aperture glare. Non-reflective matte black or white finish.
• Socket - One vertically mounted socket orients lamp at optical focal plane of reflector for precise optics.

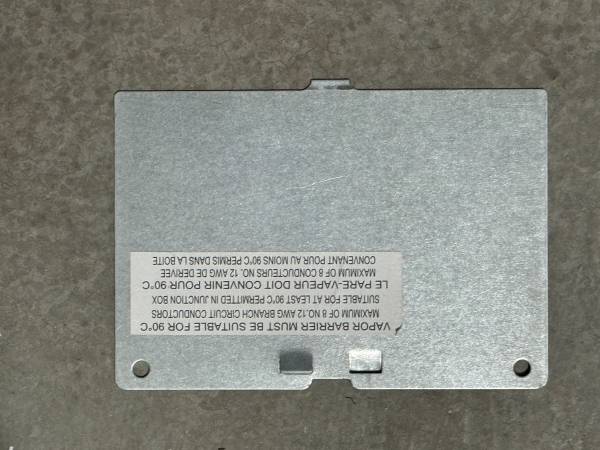

• Junction Box - Extra large 32 cubic inch .063" galvanized steel with snap on cover and ground wire riveted to frame. Approved for Through Branch Circuit Wiring with up to 3 #12 guage AWG conductors. Knockouts for 1/2" and 3/4" conduit and 4 romex pry-outs with strain relief.
Please refer to the document below for detailed specs:
https://www.ideadigitalcontent.com/files/11215/ID-SPE-v1-PR26ASICNBNE1.pdf
