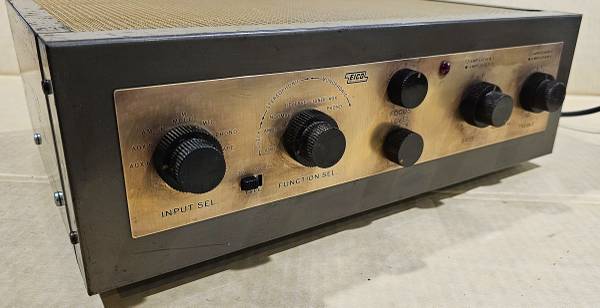

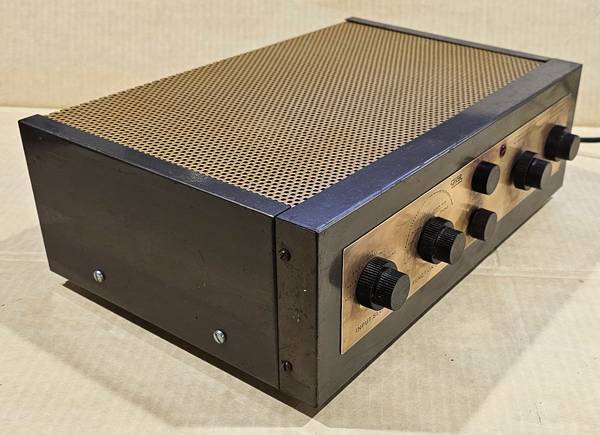

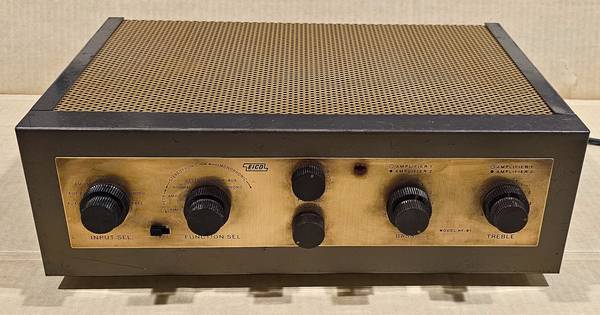

Eico Model HF-81 Stereo integrated Amp - $950 (dublin / pleasanton / livermore)
QR Code Link to This Post
It is setup for you to demo.

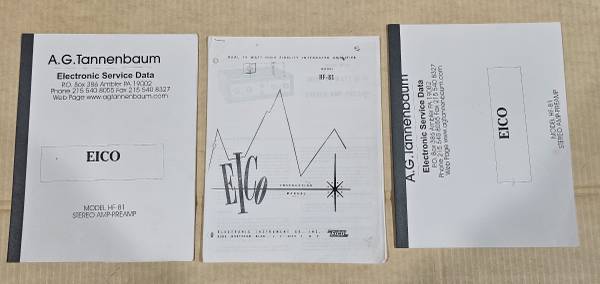

Restored by last owner and then serviced in May by a pro shop. It works and sounds as good as it's reputation. Includes all service and owners manuals
Description
The EICO Model HF-81 is a complete high fidelity stereophonic control center and a pair of 14 watt amplifiers; all on one chassis.
With it you can select pre amplify, and control accurately any stereophonic source (tape, discs, or broadcasts) and feed it through the self-contained dual 14 watt amplifiers to a stereo pair of speaker systems.
When you play a monophonic source, the 14 watts available per channel adds up to a total of 28 watts for your two speaker systems.
If you desire, both amplifiers can be connected in parallel and driven by one pre-amplifier control section while the other pre-amplifier control section is free to drive an external power amplifier.
In this way your old amplifier can be put to use in a stereophonic system.
Construction is of the low silhouette type that permits you to dispense with cabinetry if desired.
Specifications
Power output: 14 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 1%
Damping factor: 8
Input sensitivity: 6mV (mic), 4mV (MM), 500mV (line)
Signal to noise ratio: 57dB (mic), 60dB (MM), 75dB (line)
Speaker load impedance: 4Ω to 16Ω

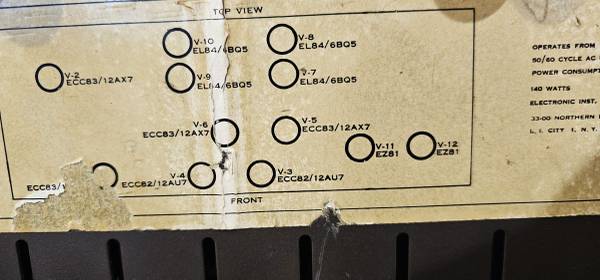

Valve complement: 4 x ECC83, 2 x ECC82, 2 x EZ81, 4 x EL84
Dimensions: 15 x 4.75 x 10.5 inches
Weight: 24lbs
