Lrg Bundle Futek Sensor Unit & (18) Load Cells - $295 (fremont / union city / newark)
Peralta Blvd near Dusterberry Way
condition:
excellent
make / manufacturer:
Futek
model name / number:
1AA100
size / dimensions:
3” x 1/2” x 1.25”
QR Code Link to This Post
Lrg Bundle Deal, to include;
(1) IAA100 Futek Sensor and (18) S-Beam Load Cells, MaxCap: 5lb to 25lb.

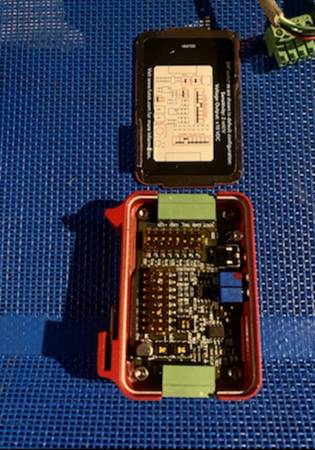

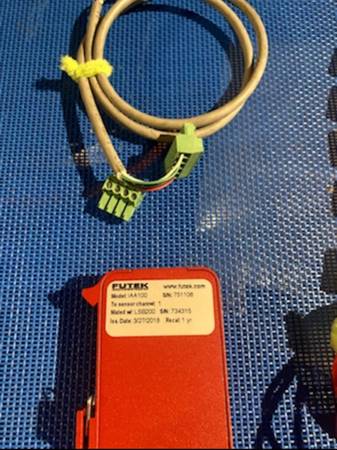

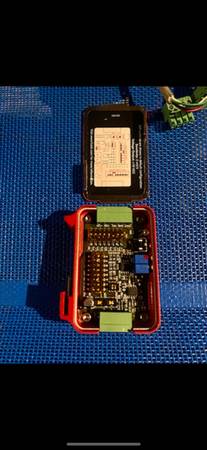

(1) Sensor Unit; FUTEK 1AA100 Premiere Voltage Strain Guage Amplifier
The IAA100 is FUTEK’s premiere voltage strain gauge amplifier solution. The IAA100 is fast, featuring up to 25 kHz of bandwidth. The small, narrow design allows for two IAA strain gauge amplifiers to fit in the same space that would normally only accommodate one instrument. We included removable screw terminals to allow for additional sensors to be easily swapped in. Our IAA100 also boasts
* 256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch).
* Read more highlighted features below. Or check out our spec sheet for more information.
256 Shunt Selections
Shunt resistors allow our users to simulate measurements, verifying whether their sensor(s) still meet their initial specs. All of our strain gauge amplifiers feature 8 shunt resistors, which offer our users up to 256 different shunt combinations.
Screw Terminal Connectors
Our team evaluated all opportunities to improve function and performance. All of our strain gauge amplifiers feature a screw terminal. Not only do they decrease noise, but they also are easier to use.

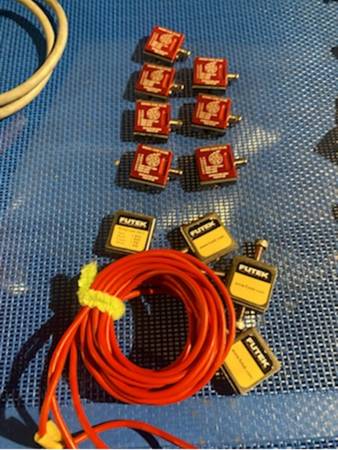

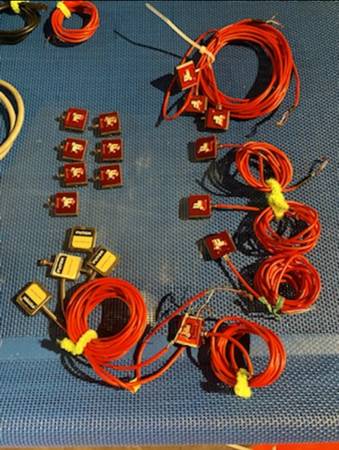

(14) Load Cells-
* FSH04097
* LOAD CELL
* LSB205
* 25 LB
* JR S-BEAM LOAD CELL 2.0
* OVERLOAD PROTECTION W/ INTEGRATED TEDS IEEE1451.4 RECOGNITION & TEMPERATURE SENSOR
* ROHS COMPLIANT
* FACTORY WARRANTY MAY NOT APPLY.
(4) Load Cells-
* FSH01675
* LOAD CELL
* LRM200
* (4) TOTAL, 1lb, JR S-BEAM LOAD CELL, (1) w/ 2 Female threaded posts
Condition: 9/10; Unknown; untested, but Sensor appears new, very clean, inside & out, with no signs of use.
Load cells have minimal signs of use(-1); ie- small superficial scratches.
———————-
NOTE: This bundle was acquired by liquidation auction. We are not trained or certified to assess the quality or full functionality of this bundle.
Buyer should bid, with the understanding that some part, of this bundle, may not be functional, refund in all, or part, is conditional, but ultimately up to the seller.
And liability, for the proper testing, calibration and use, including any damages incurred, wether to person or equipment, is the buyer’s.
——————-
Warranty-
No warranty is expressed or implied on used & vintage items unless explicitly stated.
Returns-
I do not accept returns if you have a change of heart or item is not what you’d thought it to be, so please view all pics and read entire description. Ask any and all questions prior to bidding or purchasing.
Returns may be accepted, IF the item received differs in condition or description from the listing. PLEASE do not register a complaint with eBay or PayPal, until after we’ve failed to find a mutually agreeable solution. Buyer is responsible for any return shipping charges.
IF RECEIVED DAMAGED, please keep all packing materials, boxing or crating, take pictures to document, and notify me as soon as possible, as all of the above, will be needed, to file a insurance claim with carrier.
Our Aim-
We strive to earn your business and will work to make every transaction rewarding & mutually satisfying. We aim to be as transparent & up front, in the description, condition and representation through high resolution pictures of all sides, as possible. We list, the items overall condition(ie- 1-10/out of 10), and account for any flaws or demarcations with a a (-1) and describe them.
