Integra DHC-80.3 AV Processor - $400 (fremont / union city / newark)
QR Code Link to This Post

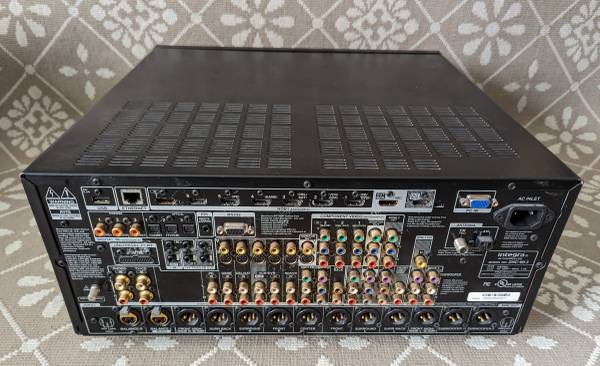

Comes with remote, Audyssey microphone, Wi-fi USB dongle
Condition: No damage, everything works. The sound and video are both excellent.
Note: This is a processor, not a receiver. You will need a separate amplifier to drive loud speakers.
$400 cash. Please reply by e-mail. I will meet you at the Fremont Police Department to transact.
===================
Official specifications:
PREAMPLIFIER:
# Channels
9.2
Frequency Response
5Hz - 100kHz
S/N Ratio (Line, IHF-A)
110 dB
THD (1Vrms)
0.05%
THX Certified
Ultra2 Plus
Absolute Ground Plate
Isolated Block Construction (Power/Preprocessor)
Shielded Toroidal Transformer
Independent Power Supply
4
Fine Linear Optimum Gain Volume
Bi-amp Capability For Front
PROCESSING:
Dolby TrueHD, Dolby Digital Plus Decoding
DTS-HD Master Audio,
DTS-HD Express Decoding
DTS Neo:X (Front High / Wide Channels)
Dolby Pro Logic IIz (Front High Channels)
Dolby Volume
THX Processing Modes & Loudness Plus
Audyssey Room Correction & Calibration
MultEQ XT32
Audyssey Sub EQ HT
Audyssey MultEQ Pro / Installer Ready
Audyssey DSX (Front High / Wide Channels)
Audyssey Dynamic EQ & Dynamic Volume
GAME Surround Modes
(Rock, Action, Sports, Role Play)
Music Optimizer2 to Enhance
Compressed Audio Files
DSD Processing / Direct Mode
192K / 32-Bit Audio DAC
Burr-Brown (x6)
Vector Linear Shaping Circuitry (VLSC)
32-Bit DSP Chip for Advanced Processing
TI Aureas (x2)
Ultra-Low-Jitter Circuitry to Improve Audio
PLL
Adjustable Crossover by Channel Pair
40/45/50/55/60/70/80/90
100/110/120/130/150/200
Accurate Speaker Distance Setting
0.2-foot
A/V Sync Delay (by Source)
800ms
Multi-Band Speaker EQ
15
ISF Certified Calibration Controls (ISFccc)
(w/Gamma Curve Edit)
Picture Control Settings per Source
CONNECTIVITY:
HDMI v1.4a (3D Support, Audio Return Channel)
HDMI Inputs / Output(s)
7 + 1 / 2
Simultaneous or Independently Active
HDMI Outputs (Main / Sub)
Front Panel HDMI Input
HDMI Upscaling & Upconversion
(HQV Vida)
1080p Upscaling
(HQV Vida)
4K Upscaling (3840 x 2160)
(Marvell Kyoto G2H)
D-Sub (15-pin) VGA Input
Component Video Inputs / Output(s)
3 / 2
Component Video Upscaling & Upconversion
(HQV Vida)
Composite Video Inputs / Output(s)
5 / 1
S-Video Inputs / Output(s)
4 / 1
Digital Audio Inputs (OPT / COAX)
4 / 3
Analog Audio Inputs / Output(s)
9 / 1
Phono Input
Front Panel A/V Input
L / R / V / Optical
Multi-Channel Input
7.1
Analog Pre-outs
9.2
Balanced Audio Output
9.2
iPod Ready
(Direct Digital USB Input, Optional UP-A1)
Network Audio Steaming
(Windows 7, DLNA v1.5 Certified)
AUPEO!, Spotify, vTuner
Last.FM, Napster
USB Input for Streaming Audio
(Front / Rear)
Wireless Network Ready via USB
(Optional UWF-1)
Firmware Updates via Network / USB
MULTIZONE:
Fixed or Variable Zone 2 / Zone 3 Line Out
Zone 2 / Zone 3 Subwoofer Output
Zone 2 Video Output
(Composite & Component)
INTEGRATION ACCESS:
Bi-directional RS-232 Control Port
Bi-directional Ethernet Control Port
Rear Panel IR Input / Output
2 / 1
RIHD (Remote Interactive over HDMI)
RI System Control
12V Trigger (w/adjustable delay)
Assignable (x3)
MISC:
Pre-programmed / Learning Remote
GUI for Remote Control Programming
GUI for Setup Menu
"Home" GUI
Bi-directional Remote Control Setup
Activity Remote
(MY MOVIE, MY TV, MY MUSIC, ALL OFF)
Input Name Edit
HDMI Standby "Thru" Mode
Setup Store & Recall Function
Permanent Memory Storage
Solid Aluminum Front Panel
Aluminum Volume Knob
Detachable AC Cord
Amplifier Section
THD (1Vrms)
0.05% (20 Hz–20 kHz, Half power)
Input Sensitivity and Impedance
200 mV/47 kΩ(LINE)
2.5 mV/47 kΩ(PHONO MM)
Rated RCA Output Level and Impedance
1.0 V/470 Ω(Pre out)
Maximum RCA Output Level and Impedance
5.5 V/470 Ω(Pre out)
Rated XLR Output Level and Impedance
2.0 V/470 Ω(Pre out)
Maximum XLR Output Level and Impedance
11.0 V/470 Ω(Pre out)
Frequency Response
5 Hz–100 kHz/ +1 dB-3 dB (Direct Mode)
Tone Control
±10dB, 50 Hz(BASS)
±10dB, 20 kHz(TREB)
Signal to Noise Ratio
110 dB (LINE, IHF-A)
80 dB (PHONO, IHF-A)
Video Section
Input Sensitivity/Output Level & Impedance
1 Vp-p/75 Ω (Component and S-Video Y)
0.7 Vp-p/75 Ω (Component Pb/Cb, Pr/Cr)
0.28 Vp-p/75 Ω (S-Video C)
1 Vp-p/75 Ω (Composite)
Component Video
Frequency Response
5Hz - 100MHz, -3 dB
Tuner Section
FM
Tuning Frequency Range
87.5 MHz– 107.9 MHz
AM
Tuning Frequency Range
530 kHz–1710 kHz
Preset Channels
40
Digital Tuner (North American Only)
SIRIUS
General
Power Supply
120V 60Hz
Power Consumption
110W
Dimensions (W X H X D)
435 x 198.5 x 445 mm
Weight
13.5 kg
