KEF REFERENCE SERIES MODEL 101 Speakers - $1,200 (berkeley)
QR Code Link to This Post

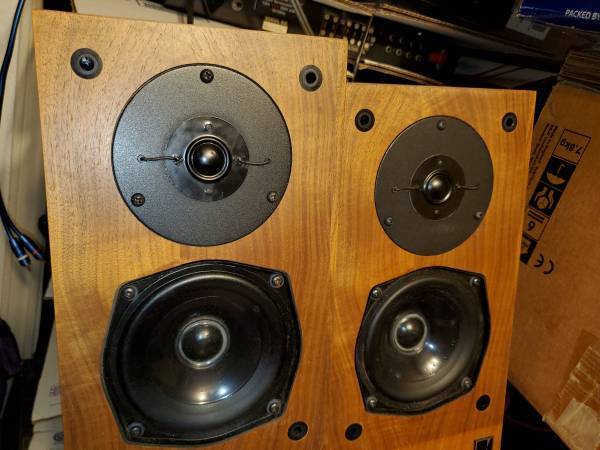

Speakers are in good condition
T27 tweeters are being adopted in the world famous BBC designed LS3/5A broadcast monitor.
Model 101 combined the T27 tweeter with the SP1057 version of the B110 in a 6.7 litre closed box. The system was fully overload protected by the S-Stop system, included mechanical decoupling of the bass driver to minimize colouration and each pair were acoustically matched to within 0.5dB. The result was a system with accurate tonal balance and detailed stereo imaging - being suitable for use with the best electronics - and able to fit unobtrusively into the listening room.
Specification: Model 101
System type: Two-way, bookshelf/stand-mount
Enclosure type: Closed box
Size: 340 x 180 x 190 mm (13.4 x 7.1 x 7.5 inches)
Weight: 5.6 kg (12.3 lb)
Input Impedance: 8 ohms
Rated maximum power: 100W programme
Amplifier Requirements: 20-100 watts per channel into 8 ohms
Frequency response: 90-30,000Hz +/-2dB at 2m on measuring axis (-10dB at 47Hz and 40kHz)
Sensitivity: 81dB at 1m for a pink noise input of 1W
Crossover Frequencies: 400, 2500Hz
Maximum output: 100dB on programme peaks under typical listening conditions
Finishes: Walnut, teak, rosewood and black ash veneers
Grille: Black cloth
System: SP1122
Drive units: B110 bass/midrange unit (SP1057), T27 tweeter (SP1032)
