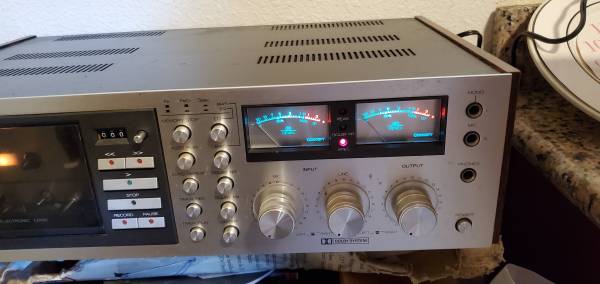

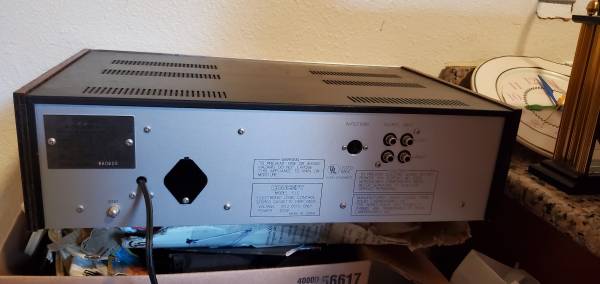

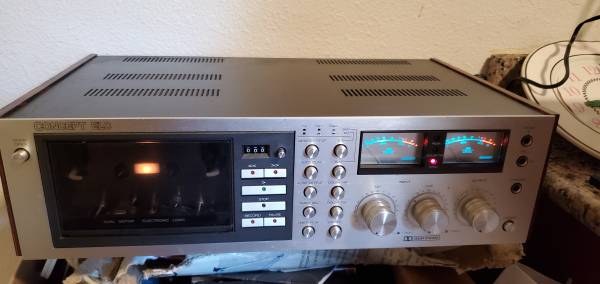

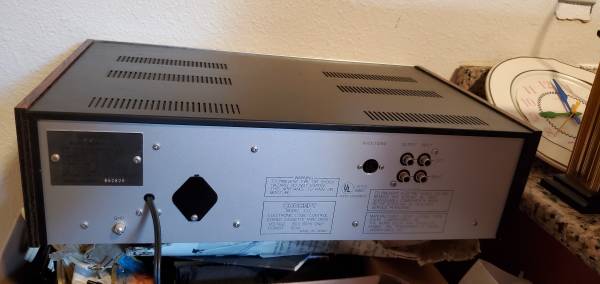

Concept ELC cassette deck - $500 (berkeley)
condition:
like new
QR Code Link to This Post
Good condition
A very nice and rare deck. Heavy and very well constructed....from the legendaryaudio line from Pacific Stereo.
Powers on, but needs the usual maintenance (belts Replacement) in order to be in full working condition
More info.....
The ELC II is the second generation Concept deck featuring fluoroscan meters, replacing the ELC (VU meters), and was designed to go with the digital display series (4.5D, 7.5D, 12.0D) Concept receiver. It also features the green and red LED buttons and wood sides to match the Concept receivers, speakers and turntable of the era. It weighs in at just a tad under 30 lbs.
The ELC II represents a substantial evolutionary improvement over the first generation, and features:
Dual Dolby circuitry,
DC electronic servo capstan and DC hi-torque hub motors
Electronic logic solenoid-assisted tape function controls with LEDs
Memory stop, Auto play, Auto repeat
Timer record and play with optional external timer controls
Bias and equalization for Fe FeCr, and special tapes
Separate mic and line input level controls
Output level control
Two dB-calibrate recording level meters with LED peak-reading indicator;
Fast-forward/rewind time 75 sec (C-60)
Wow and flutter 0.05% wrms
Frequency response +-3 dB 30-16,000 Hz (Cro2, FeCr, and special), to 14,500 Hz (Fe and normal)
THD 1.0% at +3 dB, 0.3% typically; S/N 62dB with Dolby
Input sensitivity/impedance 60 mV/47k ohms (line), 0.27 mV/600 ohms (mic)
Output level/impedance 1.0 V at +3 dB/47 ohms (line), 100 mV/8 ohms (headphone)
