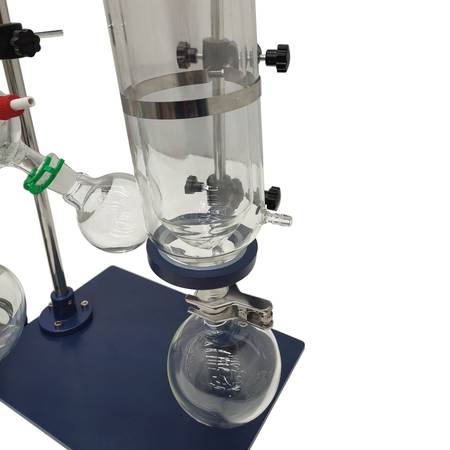

Short-range molecular distillation apparatus 220531 - $920 (hayward / castro valley)
QR Code Link to This Post
Laboratory short range distillation is a thermal separation process of heat-sensitive products under vacuum conditions. The atmospheric pressure within the system is reduced by the addition of a vacuum, and when the pressure is reduced, the boiling point of the compounds contained will decrease. This process makes the extraction of heavier molecules faster and more efficient. Short residence time and low evaporation temperature will cause small thermal stress on the distillation product. It is designed according to the principle of molecular distillation. Typical applications are polymer organic compounds, chemical pharmaceutical, food health industry, industrial and other fields.
Heating sleeve Parameters:
Capacity (ml):2000
Voltage:110V 60Hz
Power：650W
Temp control（℃）:PID control, inner and outer thermocouple
Working time: continue
Temp range: ambient to 380.
Temp accuracy:±1℃.LED display
Shell material: superfine metal, anti-aging, anti-corrosion
Insulating barrier material: environmental alumina silicate fiber
Upper diameter (mm):180
Exterior dimensions (cm):27.5*19
Net weight (kg):2.93
List:
Smart thermostatic heating sleeve:1(2000ml)
Two distilling bottles:1(2000ml)
Needle distilling head:1(double-deck)
Condenser pipe:1(180ml)
Still head:1(250ml)
Collecting bottle:3(250ml)
Collecting bottle:1(1000ml)
Cold trap:1(120ml)
Thermometer sleeve:1(24#)
Clasp:5(24#)
Clasp:1(29#)
Ball jaw clamp:1(34#)
Triple-grip clip:1(10ml)
Supporting floor:300*350mm
Upright:2(19mm)
Cold trap fixture:1(120mm)
Cold trap support ring:1(100mm)
Cross clamp:3
Item Number: 220531
☆☆☆Before pick up, please call us to make an appointment☆☆☆
★★★Pick up will be on the outside of our store, social distance required★★★
There are Service and Technical Support for all our products.
Local pick up details:
2376 American Ave.
Hayward, CA 94545, United States
Tel: show contact info
Business Hours
Monday - Friday 8:30AM - 5:00PM
Hot sale product, before pickup, please contact us to make sure the inventory and price.
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure. Please tell us either Ad ID number or our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
