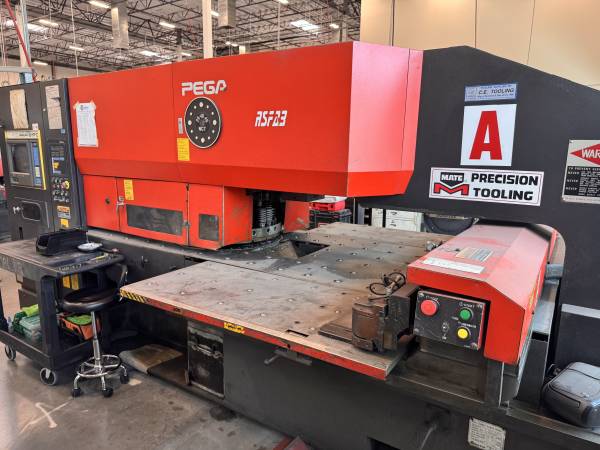

Used Amada Pega 244, 22 Ton 24 Station CNC Turret Punch Press - $15,900 (NV)
QR Code Link to This Post
Specifications:
Press capacity: 22 Tons (20 Tons Metric)
Max. Sheet Size (with repositioning): 40" x 80"
Max. Sheet Thickness: 0.25"
Max. Sheet Weight: 110 lbs
Max. Hole Diameter: 3.5"
Strokes per Minute: 350
Max. Hit Rate (1" centers): 200 hits per minute
Positioning Speed: Up to 2559 inches per minute
Feed Speed: 50 IPM
Turret Speed: 30 RPM

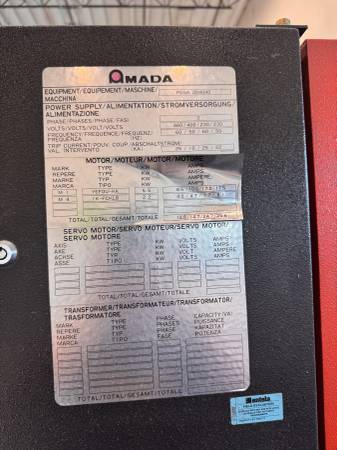

Power: 16 kVA
Main Motor: 3.7 kW
Air Pressure: 6 bar

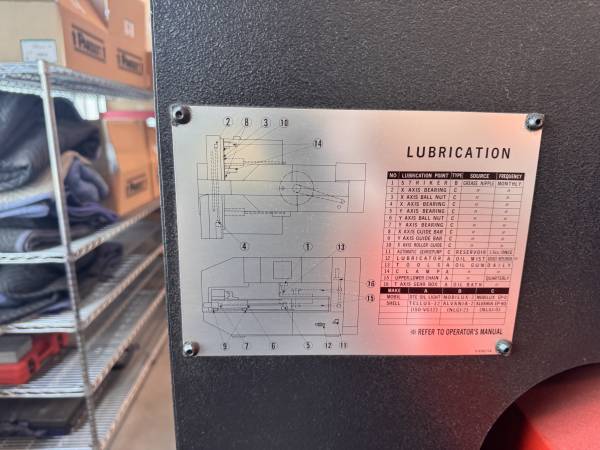

Lubrication Tank: 2L
Oil Tank: 50L
Turret capacity:: 24 stations
Machine dimensions: 157" X 90" X77"
Machine weight: 18,750 lbs
Equipped with:

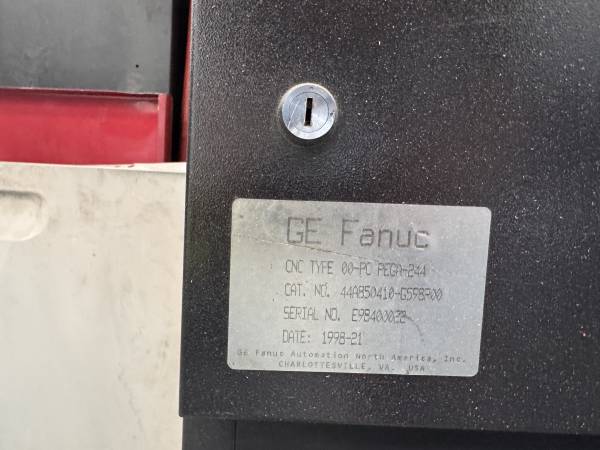

Fanuc Amadan 04P-C CNC Control
Machine is Clean and in Good Working Condition. In Plant, Under Power. Demos Available upon Request.
Customer purchased some new equipment and need the space the Used Amada Pega is in so they would like to sell it.
Available for Immediate Delivery!
Buyer is Responsible for Freight & Rigging
Price: $15,900.00 or Best Offer
FOB(Location): Las Vegas, NV 89120
Please provide a contact email or telephone # in your reply to this ad if you would like to purchase, schedule inspection, etc. Thank you.
***Machine is Sold "As-Is, Where-Is" with No Warranty Expressed or Implied. Buyer is Responsible for Machine Inspection prior to Shipment.
