MR-20G Drill Bit Grinder Sharpener Grinding Range ф3-ф20 027319 - $635 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=027319&typeid=2468
Description:

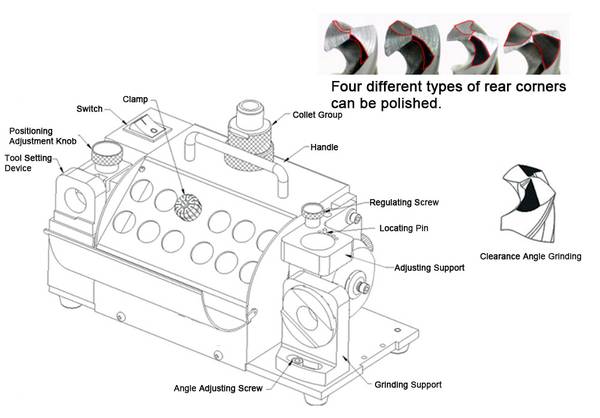

This machine is a point-and-shoot drill grinding machine, precision grinding and fast, simple operation, without skills can easily grind. Affordable, saving costs and improve efficiency in the use. A wheel just to complete all the processes, the precise angle, long life. Powerful DC motor electronic control: frequency stabilization, high-powered, long use.
It can sharpen the drill's point angle and lip relief angle, adjustable center chisel size, easy drilling and easy chip evacuation.
Features:
1. Grinding is accurate and rapid, easy operation with no skill to grind.
2. Economical price that greatly reduces the cost and improves the use effect.
3. With CBN grinding wheel, it can be equipped directly with an accurate angle and long service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
Parameters:
Model： 20G
Grinding Range： ф3-ф20
Point angle：100°(95°)-135°
Power： 110V, 60HZ
Motor：120W
Speed：4400rpm
Grinding Wheel：CBN (For HSS)
Weight：10KG
Details

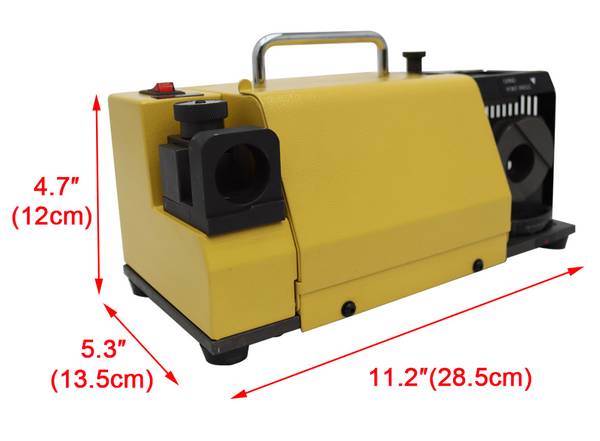

Small body, one hand can lift, occupy small space, suitable for any place for the drill grinding.
The grinding angle can be adjusted freely according to the required bit tip angle
Adjust the scale pointer according to the outside diameter of the grinding bit, rotating positioning, simple operation, accurate positioning.

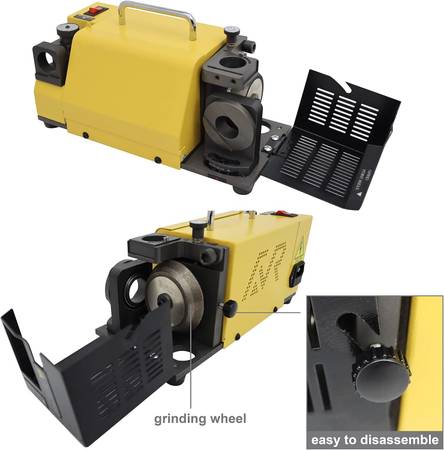

The grinding wheel can be replaced freely.
Item Included: 027319
Grinding wheel :CBN (For HSS)×1 piece

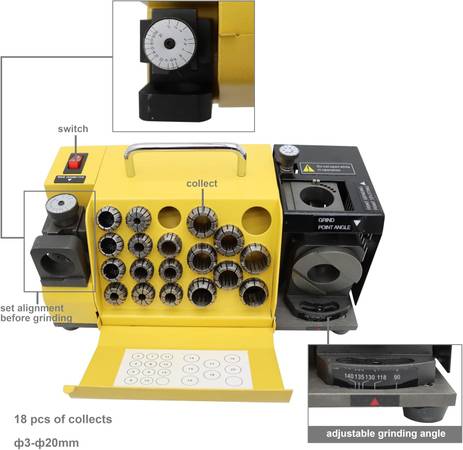

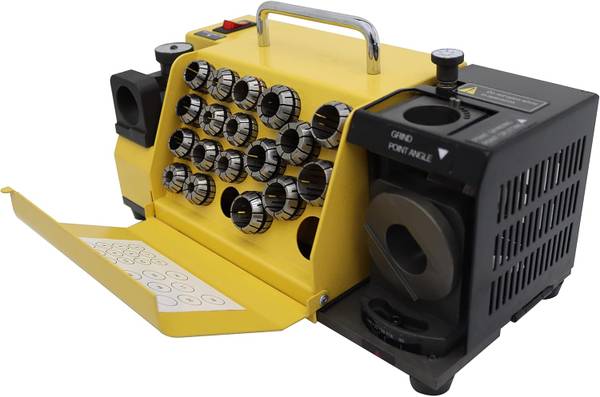

18Collets: Phi 3-Phi 20
Collet chuck ×2 piece
Electric wire: 1piece
2 piece hexagon wrench
Before pick up, please call us to make an appointment
Pick up will be on the outside of our store, social distance required
There are Service and Technical Support for all our products.
Local pick up details:
2376 American Ave.
Hayward,CA 94545,United States
Tel: show contact info
Business Hours
Monday-Friday 8:30AM - 5:00PM
Hot sale product,before pickup,please contact us to make sure the inventory and price.
Notice:
1.Limited stock,please purchase ASAP if you want it.
2.Before pickup,please call us to make sure. Please tell us either Ad ID number or our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
Below is our store website ,you can find what items we have
https://eezglobal.com/
