Double Tube Vacuum Dust Suction Fan Cement Ground Grinder 239912 - $1,535 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=239912&typeid=2332
Note: The ground polishing machine cannot polish the ground where glue exists.
Features
1. The pure copper motor is of high quality and the product is sturdy and durable. The new stator and rotor
of the motor can easily realize the conversion of electrical energy and mechanical energy.
2.Diamond chassis is sharp, hard, wear-resistant, work efficiency and high quality.
3.High performance, stable life, long service life.
4.Highly adaptable cement floors can also be fully hardened and work can be done at the root of the wall.
5.With dust suction fan, two tubes for vacuuming,dust-free operation.
Parameter
Voltage: 220V
Power: 4.5kw
Grinding Width: 410mm
Working Speed: 1440r/min
Fan Power: 1.8kw
Max Airflow: 180mm³/h
Dust Loading Capacity: 30L
Number Of Grinding Heads:6pcs
Net Weight:349.8LBS(159kg)
Details
High-efficiency dust removal filter element,can filter 90% of dust.
Special dust cleaning device, gently pull, dust will fall.
The handrail has three adjustable holes for easy adjustment as needed. The handrail can be put down completely when not in use.
When replacing the chassis grinding head, the machine needs to be put down, and the added buffer rubber wheel can support the machine, so that the machine does not directly contact the ground.
The adjustment slider is added, so that the chassis can move left and right, and it can work closer to the wall when grinding.

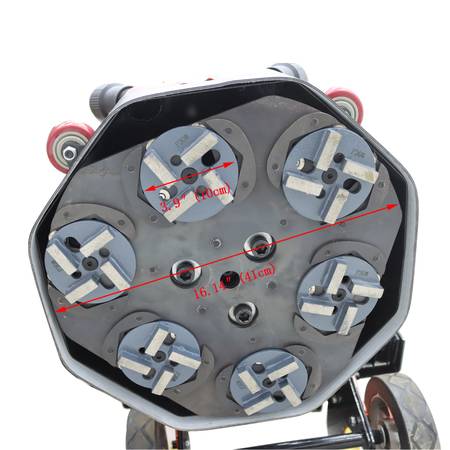

Diamond grinding head, resin grinding disc, sandpaper, etc. Can be replaced as needed.
Free PVC dust mat, which can effectively prevent dust overflow during polishing.
Complimentary counterweight iron, can be installed as needed.
30L large capacity dust bucket, dust filled should be cleaned in time.
Widened solid rubber casters ensure smooth operation and long service life.
Double tube vacuum, large suction, high efficiency, dust-free work.
Simple operation, real-time display voltage, aviation plug, convenient and safe.
Note:Different grinding head is suitable for different ground, this machine comes with a set of diamond grinding head, resin
grinding disc, sandpaper, grinding special ground or need other grinding head, please contact us in advance.
The machine does not have a plug and does not come with an air switch. Please prepare
your own air switch connection.
Give away 5 meters of wires. The maximum length of the machine can be connected to 90
meters of wires. The specification is three-core wires. Each wire should not be less than 6
mm ² of pure copper wire. The wire must be connected to the air switch, and the rated
current of the air switch is about 63A.
Precautions for use
1. The input voltage should not be too low.
2. When using, first lift the machine head off the ground,and then turn on the switch. When
the machine head rotates normally, gently place it on the ground.
3. When working, the machine head swings left and right,then moves forward, and cannot
stop in place.
4. In case of power failure during operation, the switch should be reset and cannot be
stopped at the original position to avoid burning the motor when the power is on.
5.If a generator is used to provide power, the output powerof the generator must be at least
13.5 KW.
6.Work for 20-30 minutes to remove the dust in the filter element to ensure the normal
operation of the fan.
Note: Two types of connectors are shipped randomly.
Item Included: 239912
1*Hand-push Cement Ground Grinder 220V
