1 Bag Filter Water Sewage Oil Beverage Chemistry Filter 025271 - $455 (hayward / castro valley)
QR Code Link to This Post
1 Bag Filter Water Sewage Oil Beverage Chemistry Filter 304 Stainless Steel 025271
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=025271&typeid=2229
Stainless steel bag filter performance characteristics:
Filter bag side leakage probability is small, effectively ensure the filtration quality.
Bag filter can bear greater working pressure, small pressure loss, low operating costs, energy saving effect is obvious.
Bag type filtration has large capacity, small volume and large pollution capacity.
Based on the working principle and structure of the bag filter system, the replacement of the filter bag is convenient and fast,
and the filter is free of cleaning, saving labor and time.
The filter bag can be used repeatedly after cleaning, saving costs.
Bag filter has a wide range of applications, flexible use and diverse installation methods.
Advantages of side in and side out bag filters:
Good sealing effect, preventing side leakage. The effective filtration area is large, the floor area is small, and the filtration
efficiency is higher. Replacing filter bags is more convenient, fast, and cost-effective. Reasonable structure, more stable and
reliable filtration. Adapt to most occasions and space requirements.

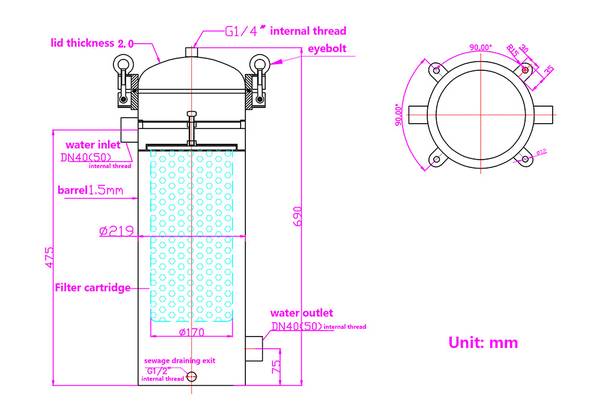

Specifications:
Model φ219*690
Material SUS304
Filter area (m²) 0.25
Flow (m³/h) 12-15(tap water)
Max Working Temperature (℃) 80
Min Working Temperature (℃) -5
Working Medium Liquid
Hydraulic Pressure(Mpa) 1
Details:
Manometer
Observe the pressure value inside the filter at any time, and replace the filter bag in a timely
manner when the pressure fluctuation range is large.
Ring Bolt
Four M12 circular bolts are used to lock the cover, making disassembly and installation simple and convenient.

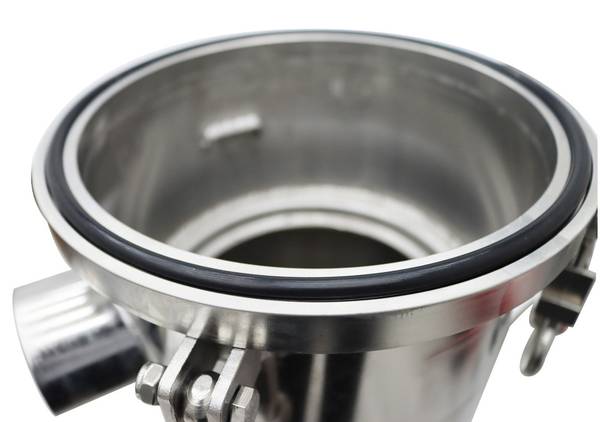

O-ring Seal
O-shaped rubber sealing ring provides sufficient sealing preload and good sealing performance.

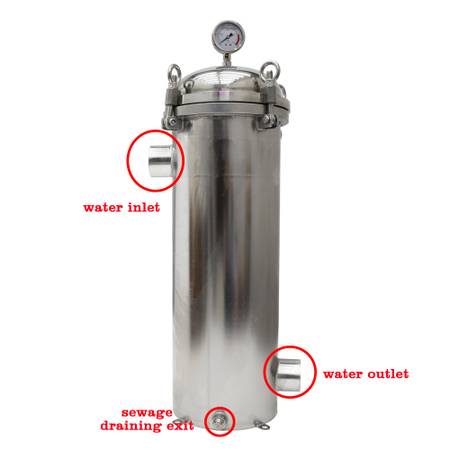

Side Inlet And Outlet
Good sealing effect, preventing side leakage,effectively ensure the filter quality.

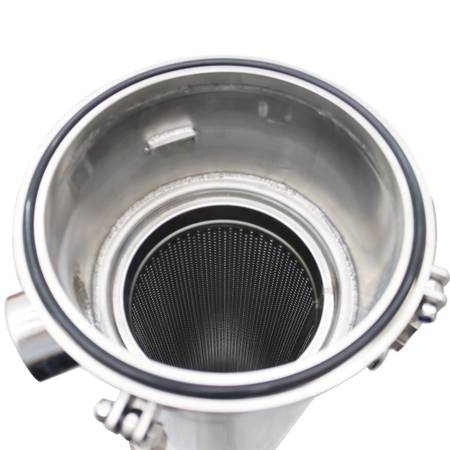

Support Basket
A metal support net is used to support the filter bag.
Filter Bag
Bag filter bearing large working pressure, standard with a 25 micron filter bag, filter bag
can be used repeatedly after cleaning, saving costs.
Item included: 025271
1*#1 Bag Filter Corrosion-resistant 304 Stainless Steel
Notice:
Before pick up, please call us to make an appointment
Pick up will be on the outside of our store, social distance required
There are Service and Technical Support for all our products.
Local pick up details:
2376 American Ave.
Hayward,CA 94545,United States
Tel: show contact info
Business Hours
Monday-Friday 8:30AM - 5:00PM
Hot sale product,before pickup,please contact us to make sure the inventory and price.
Notice:
1.Limited stock,please purchase ASAP if you want it.
2.Before pickup,please call us to make sure. Please tell us either Ad ID number or our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
