8”Linear Actuator 24V DC 6000N Heavy Duty Actuator 0214428”Linear Actu - $40 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=021442&typeid=1961
Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
Please Note:
Because of many models, different telescopic length. So actual item may look different from the one shown on the webpage. The web page shows: S = 200MM (8Inch).
Input Voltage : 24V DC
Stroke Length : S = 200mm (8inch)
Min Installation Dimension: L=S+175mm
Max Installation Dimension: A= 2S+175mm
Max Push Load : 6000N (1320lbs)
Max Pull Load : 4500N (990lbs)
Speed : 5~7mm/s
Operating frequency : Max 25%
Duty Cycle : 25%
Protective Class : IP54
Operation Temperature: -26~85 degree centigrade
Control Mode : Positive & Negative
Package size: 18.90*8.66*5.91inch (48*22*15cm)
Gross weight: 2.64lbs (1.2kg)
Items included: 021442

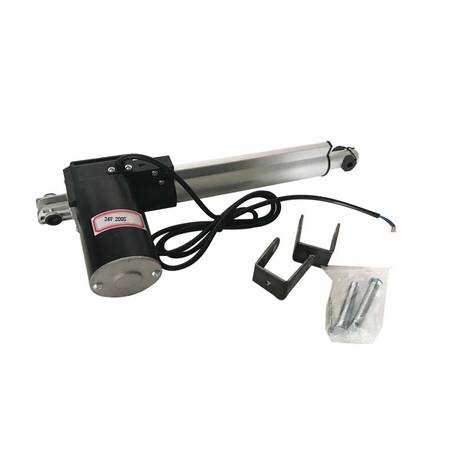

1 set of Linear Actuator(6000N,200mm,24V DC)
Notice:
Before pick up, please call us to make an appointment
Pick up will be on the outside of our store, social distance required
There are Service and Technical Support for all our products.
Local pick up details:
2376 American Ave.
Hayward,CA 94545,United States
Tel: show contact info
Business Hours
Monday-Friday 8:30AM - 5:00PM
Hot sale product,before pickup,please contact us to make sure the inventory and price.
Notice:
1.Limited stock,please purchase ASAP if you want it.
2.Before pickup,please call us to make sure. Please tell us either Ad ID number or our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
