6.7 "Diameter Curved Screen Printing Machine for Pen Cup Bottle 006591 - $145 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=006591&typeid=1634
Application:

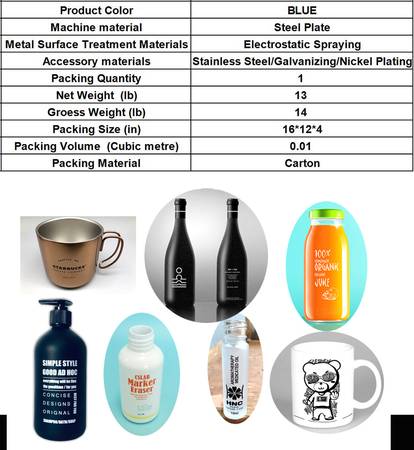

This printer could be used for cylindrical & cone type products, such as winebottle, medicine bottles, cosmetics bottles and other packaging bottles; Mugs, thermos cup, beer mugs, red wine glass; Glass tube, pen ,ballpoint pen, fishing rod, bat and other small cylindrical items.
If the printing surface has large concave/ convex/ spots and other non-plane part, will not suitable for the machine.
Character:

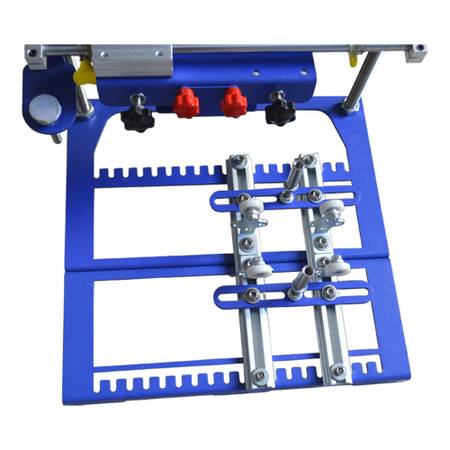

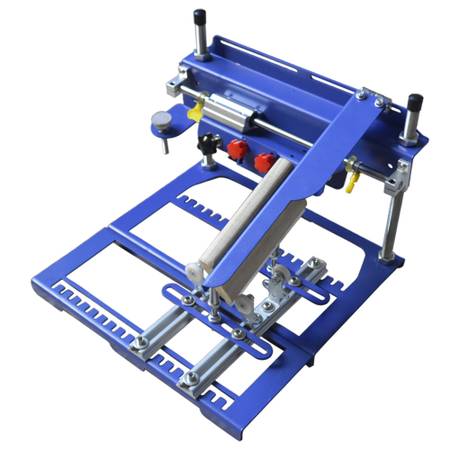

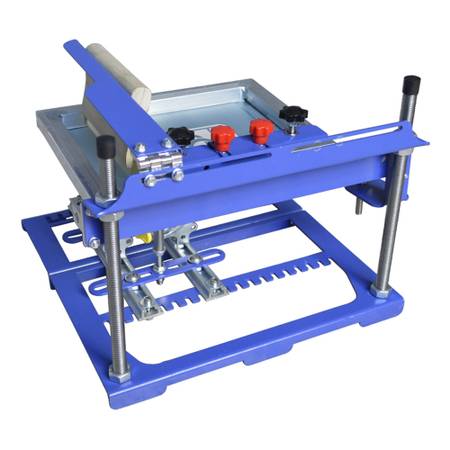

The machine adopts push-pull structure, installation parts can be installed at right or left according to using habit.
Max pattern size: 8" x6" (20x15cm)
Max screen frame size (outer diameter): 10x18x1.5 inch (26x45x3.6cm)
Height of the cross beam behind the printer is adjustable by the bolt. Adjustable range is 7.8" (20cm), max diameter of the printing object is 6.7" (17cm)
Each machine equip with three aluminum alloy post, they could be moved in 11.4" (29cm)
Squeegee holder movable range: 9.8" (25cm)
Max squeegee length: 7.9" (20cm)

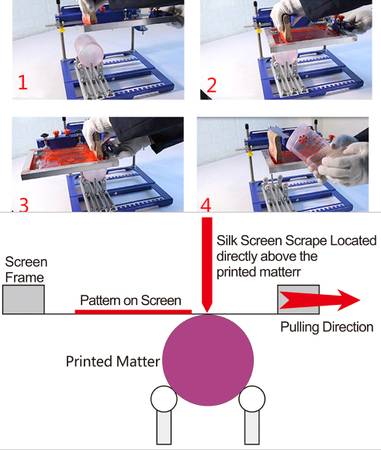

Using Method:
1. Install the screen frame and adjust to the suitable height, install the handle position according to using habit.
2.Install the squeegee and fix it at a distance of 1-2 cm from the pattern.
3.Adjust the position of the printing frame and roller bearing, place the printing object on wheel and leave some spac between the screen frame. Make sure the printing object if line up with the squeegee.
4. Adjust the screen frame position and pour out ink.
5. One hand hold the squeegee and another hand pull the handle to roll the cylinder. Then you'll get a printing logo.
Item include:006591
1 set Curved Screen Printing Machine
Before pick up, please call us to make an appointment
Pick up will be on the outside of our store, social distance required
There are Service and Technical Support for all our products.
Local pick up details:
2376 American Ave.
Hayward,CA 94545,United States
Tel: show contact info
Business Hours
Monday-Friday 8:30AM - 5:00PM
Hot sale product,before pickup,please contact us to make sure the inventory and price.
Notice:
1.Limited stock,please purchase ASAP if you want it.
2.Before pickup,please call us to make sure. Please tell us either Ad ID number or our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
Below is our store website ,you can find what items we have
https://eezglobal.com/
