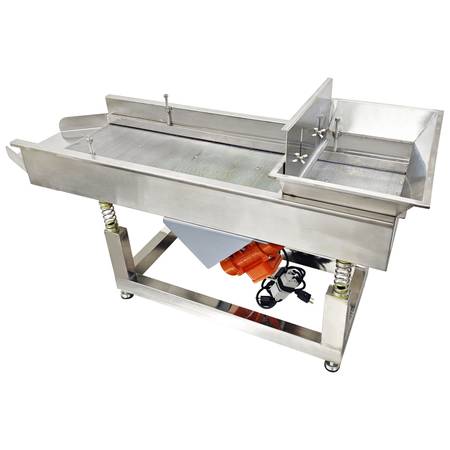

3mmFull Stainless Steel Linear Vibrating Screen 110V 120w*2 230387 - $1,139 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=230387&typeid=2358
The linear vibrating screen is specially designed for large output. It can accurately screen and classify materials and improve working efficiency.
Introduction:
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.
The linear vibrating screen has the advantages of small volume, light weight, simple structure, convenient installation, easy operation and maintenance.
The linear vibrating screen has low energy consumption and high efficiency.
The screening accuracy of linear vibrating screen is high.
Linear vibrating screen parameters reasonable, stable performance.
We also provide other sizes of screen, if you need to contact us.
Working principle:
The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation. This machine is composed of sieve box, vibration motor and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor. By adjusting the height of the baffle, the sinking speed of the material can be controlled. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.
Product information
Parameter:
Material High quality stainless steel
Voltage 110V
Power 120W*2
Machine size 47.24*19.1*26.77"
Size of feed port 19.1*13.98"
Mesh size 3mm
Mesh shape Round Hole
Speed 3000RPM
Use Maintenance
Before use, check all parts and accessories to ensure that the installation is correct before power.
The vibrating parts of the machine shall not be connected with or in contact with any object outside the machine while the machine is in operation.
When the material is fed, it should be fed in the direction of the whole width of the screen at the feed inlet to ensure the even distribution of the material on the screen surface.
When the material falls, there should be no big impact, so as not to damage the screen.
No retained material shall be found on the screen surface before starting or stopping the machine.
If there is abnormal sound during the operation of the equipment, it should be immediately shut down to check, after troubleshooting can boot.
Details:
Dual motor material propulsion technology, faster discharge, more fine screening, can work continuously for 8-9 hours.
The stainless steel pressure strip contains silicon rubber shock absorption seal strip.
Silicone seal to prevent material leakage. With a certain degree of flexibility, reduce the friction when working, less noise.
Tighten the fixing bolts during use to secure the screen and pressure strip.
Size of feed port:19.1*13.98".
Can be put into a one-off around 44.1LBS (20 kg) of material.
The bottom feet screws are adjustable, and you need to level the 4 feet before use.
Two-stage outlet, the classification of materials can be automatically excluded, saving time and labor.
Size of first stage discharge port:5.12"(13cm).
Size of secondary discharge port:9.06"(23cm).
The machine is equipped with high-quality stainless steel baffles that can adjust the discharge speed.
Without installing the baffle plate, the sinking speed of the material cannot be adjusted.
Aperture length 2.76"(7cm)
Linear vibrating screen is widely used in chemical industry, plastics, metallurgy, glass, building materials, fertilizer, ceramics and other industries.we also provide other sizes of screen mesh, if you need, please contact us.
Item included: 230387
1*110V Stainless Steel Linear Vibrating Screen(3mm )
Notice:
Before pick up, please call us to make an appointment
Pick up will be on the outside of our store, social distance required
There are Service and Technical Support for all our products.
