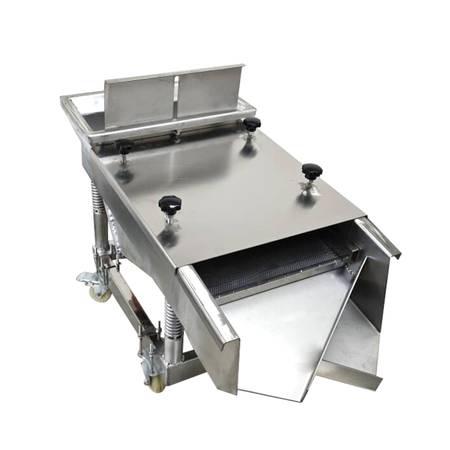

3mm Stainless Steel Linear Vibrating Screen with Cover110V 230392 - $1,065 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=230392&typeid=2358
The linear vibrating screen is specially designed for large output. It can accurately screen and classify materials and improve working efficiency.
The body part is equipped with a top cover, which can reduce dust during operation.
Introduction:
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.
●The linear vibrating screen has the advantages of small volume, light weight, simple structure, convenient installation, easy operation and maintenance.
●The linear vibrating screen has low energy consumption and high efficiency.
●The screening accuracy of linear vibrating screen is high.
●Linear vibrating screen parameters reasonable, stable performance.
●We also provide other sizes of screen, if you need to contact us.
Working principle:
The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation.
This machine is composed of sieve box, Machine top cover vibration motor, vibration damping system and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor.
The machine is equipped with high-quality stainless steel baffles that can adjust the discharge speed.
The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.
Product information
Parameter:
Material High quality stainless steel
Voltage 110V
Power 150W
Machine size 39.37*19.49*25.98"
Size of feed port 19.49*10.63"
Mesh size 3mm
Mesh shape Round Hole
Use Maintenance
●Before use, check all parts and accessories to ensure that the installation is correct before power.
●The vibrating parts of the machine shall not be connected with or in contact with any object outside the machine while the machine is in operation.
●When the material is fed, it should be fed in the direction of the whole width of the screen at the feed inlet to ensure the even distribution of the material on the screen surface.
●When the material falls, there should be no big impact, so as not to damage the screen.
●No retained material shall be found on the screen surface before starting or stopping the machine.
●If there is abnormal sound during the operation of the equipment, it should be immediately shut down to check, after troubleshooting can boot.
Details:

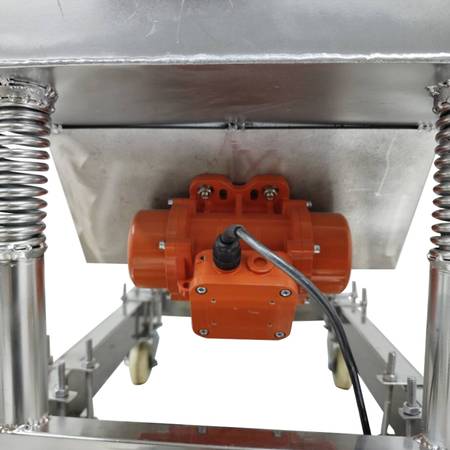

High-quality motor material advancement technology, faster material discharge, finer screening, capable of continuous operation for 8-9 hours.
Solid stainless steel trim, durable and sturdy.
Tighten the fixing bolts during use to secure the screen and pressure strip.
Size of feed port:19.49*10.63"
Can be put into a one-off around 44.1LBS (20 kg) of material.
The bottom wheels are adjustable, and you can change the installation position of the wheels as needed.

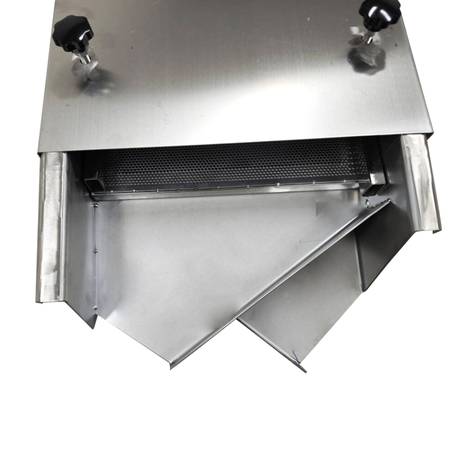

Two-stage outlet, the classification of materials can be automatically excluded, saving time and labor.
Size of first stage discharge port:5.12"
Size of secondary discharge port:5.91"
The machine is equipped with high-quality stainless steel baffles that can adjust the discharge speed.
Without installing the baffle plate, the sinking speed of the material cannot be adjusted.
Linear vibrating screen is widely used in chemical industry, plastics, metallurgy, glass, building materials, fertilizer, ceramics and other industries.we also provide other sizes of screen mesh, if you need, please contact us.
Using steps
Check each part of the machine:
Install bottom wheels before use.
Check the machine base, especially the screw of the motor, if it is loose, it needs to be tightened before use.

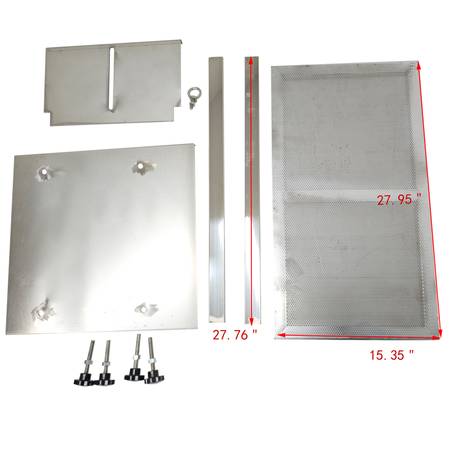

Install screen and place stainless steel batten.

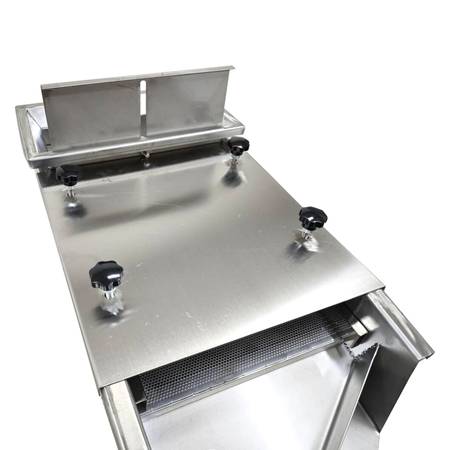

Install the top cover and tighten the 4 stainless steel bolts. The screen must be fixed to prevent damage caused by loose operation of the machine.
Clean the screen in time after stopping work.
Item included: 230392
1*110V Stainless Steel Linear Vibrating Screen(3mm )
