220V Electric Pipe Threader Machine 1/2 - 2" Threading Cutter NPT SQ50 - $815 (hayward / castro valley)
QR Code Link to This Post
Description
Product instruction:

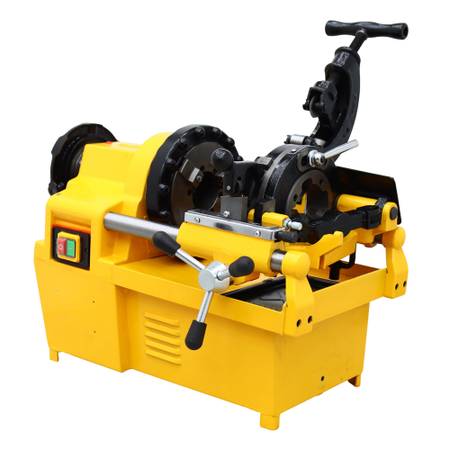

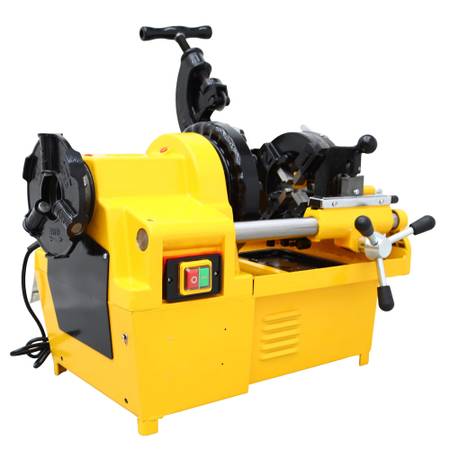

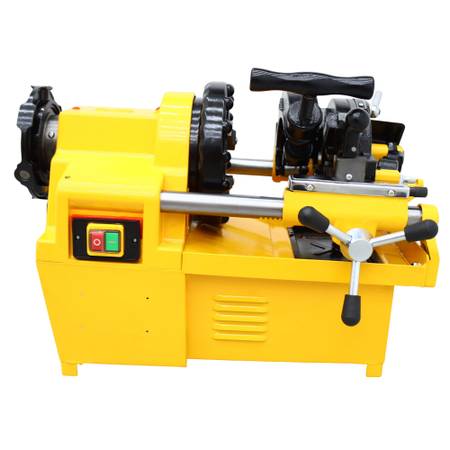

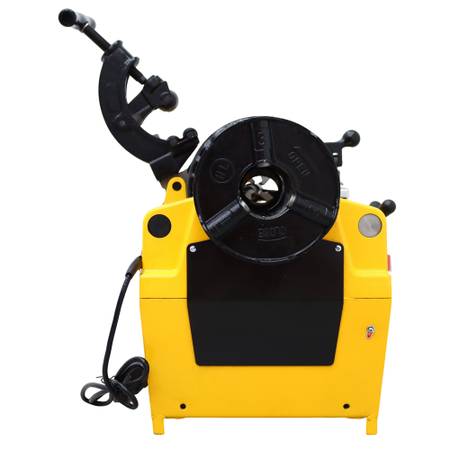

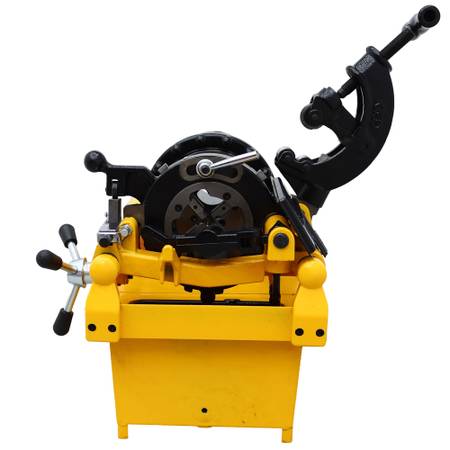

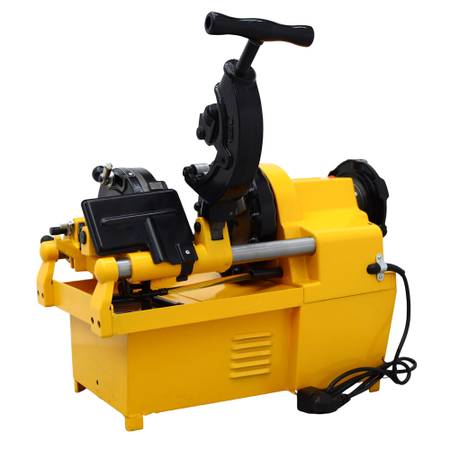

This power pipe threading machine features industrial-quality threading. It threads,cuts,
and reams water, electric, and gas pipes. It can accommodate 1/2"-2" pipe threads.
The through-head oiling
system facilitates movement and allows for longer work sessions.
Caution: Follow directions and instructions of the Electric Threader User's Manual to
avoid danger to operate it.
Technical Parameters
Range of work 1/2"-2"British Standard thread
Screwing Die 1/2"-3/4" one set 14threads/inch
1-2" one set 11threads/inch
Rockwell Hardness:HRC58-62
Electric Motor Alternative Current :220V-50Hz,outpit:750W
Maximal OUTPUT rotational Speed 22turns/minute
Maximal Chuck Capacity Φ65mm
Sledge Travel 110mm
Oil Feeder Geared pump, automatical circulation
Noise <85dB
Physical Dimension Length x width x height:635x400x440 mm (not include the height of the stand bar)
Weight 62kg
