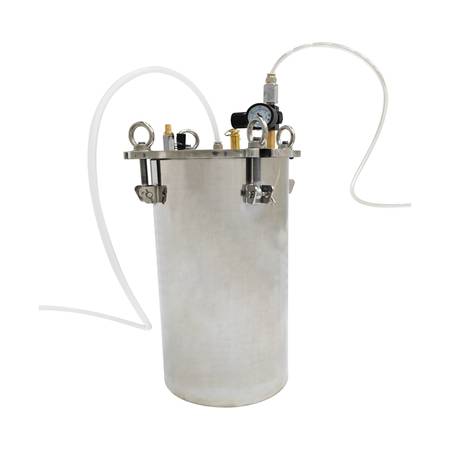

20L SS Dispenser Pressure Tank Dispensing Storage Bucket 033211 - $640 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=033211&typeid=2042
Pressure storage drums are suitable for storage and transportation of electronics, chemical plants, toy factories, hospitals, laboratories, etc., containing various glues, coatings, and medical sterilization.
The product structure is reasonable, welding firm, strong pressure, no leakage, corrosion resistance, easy to clean.
Product parameter:
Material: Stainless steel
Volume: 20L
Working pressure: 8.8-15.4Lbs (4-7KG)

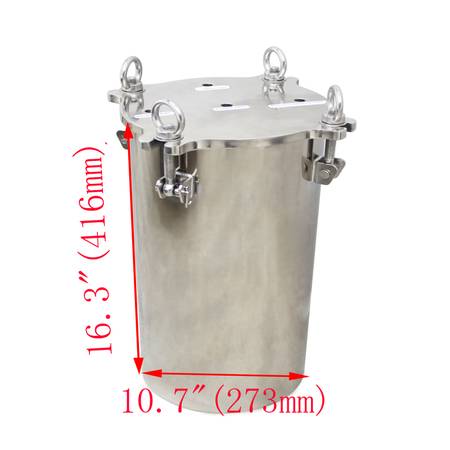

Outer diameter: 10.7Inch (273mm)
Inner diameter: 10.3in (262mm)
External depth: 15.7Inch (400mm)
Internal depth: 15.1Inch (385mm)
Barrel thickness: 0.2Inch (5.5mm)
Barrel cover thickness: 0.5Inch (14mm)
Total height: 16.3Inch (416mm)
Features:
Large flow manual valve, easy to add glue, no need to disassemble.
The pressure barrel is made of 304 stainless steel, which is resistant to pressure and corrosion.
Precise controllable pressure regulator. The pressure regulator is equipped with pointer pressure gauge, and the pressure in the pressure barrel is controlled visually.
Simple and quick installation, just connect the gas pipe can be used.
Steps to change the glue:
1. Turn off the air inlet switch and glue outlet switch.

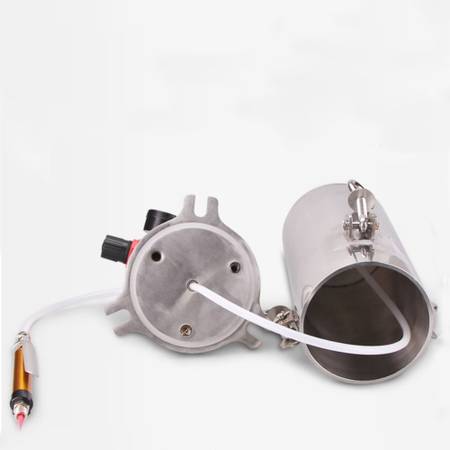

2. Open the cover of the pressure bucket.
3. Open the hydraulic valve.
4. After changing the glue, cover the bucket and tighten the ring screws
5. Close the pressure relief valve.
6. Turn on the air inlet switch and glue outlet switch.
Note: This dispenser is suitable for glue with good fluidity, high viscosity glue can not be used!
Item included: 033211
1*20L Stainless Steel Dispenser Pressure Tank Dispensing Storage Bucket
