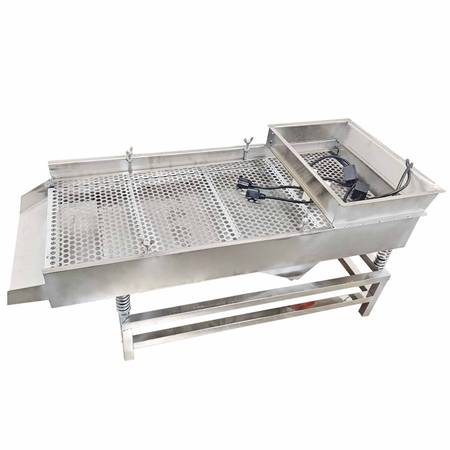

110V Full Stainless Steel Linear Vibrating Screen(JG40-95 12mm) 230332 - $819 (hayward / castro valley)
QR Code Link to This Post
-
Below is our store website link to it:
https://eezglobal.com/newproductdetail.asp?productid=230332&typeid=2358
Introduction:
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.
●The linear vibrating screen has the advantages of small volume, light weight, simple structure, convenient installation, easy operation and maintenance.
●The linear vibrating screen has low energy consumption and high efficiency.
●The screening accuracy of linear vibrating screen is high.
●Linear vibrating screen parameters reasonable, stable performance.
●We also provide other sizes of screen, if you need to contact us.
Working principle:
The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation. This machine is composed of sieve box, vibration motor, vibration damping system and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor. Adjusting the vibration force of the vibration motor, the vibration amplitude of the sieve machine and can be changed. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.
Parameters:
Voltage 110V
Power 80W*2
Mesh size 12mm
Mesh shape Round mesh
The weight of material that can be put in one time 22Lbs(10kg)

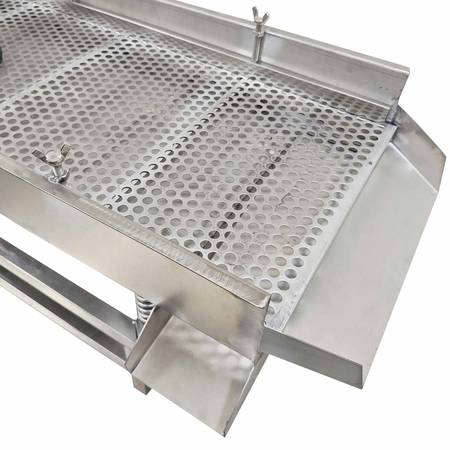

Details:

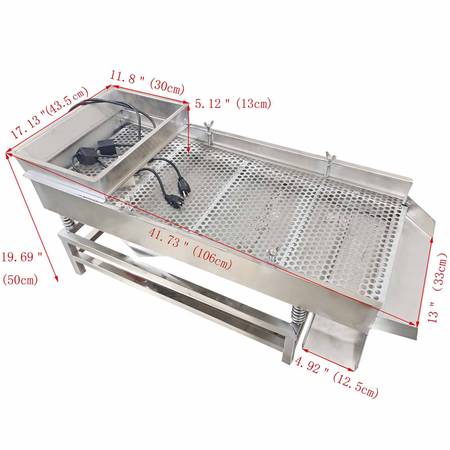

Size of feed port:17.13*11.8in
Double outlet, convenient discharge.
High-quality stainless steel damping spring is a buffer between the box and the bracket, good stability, reduce machine friction, reduce noise, damping effect is good.
With dual motor, vibration more stable
Use and maintain
●Routine check before boot: check the power cord plug is broken, the installation of damping spring, fixed screen.
●Power on, turn on the governor, adjust the speed as needed.
●Input material: put the material to be sifted evenly into the sieve.
●The screening process to observe the screening of materials.
●Clean screen and screen body, avoid material accumulation and blocking, affect screening effect.
●Check the various parts of the machine on a regular basis.
We also provide other sizes and shapes of screen mesh, if you need, please contact us!
Item included: 230332
1*110V Full Stainless Steel Linear Vibrating Screen (JG40-95,12mm)
Notice:
Before pick up, please call us to make an appointment
Pick up will be on the outside of our store, social distance required
There are Service and Technical Support for all our products.
Local pick up details:
2376 American Ave.
Hayward,CA 94545,United States
Tel: show contact info
Business Hours
Monday-Friday 8:30AM - 5:00PM
Hot sale product,before pickup,please contact us to make sure the inventory and price.
Notice:
1.Limited stock,please purchase ASAP if you want it.
2.Before pickup,please call us to make sure. Please tell us either Ad ID number or our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
Below is our store website ,you can find what items we have
https://eezglobal.com/
