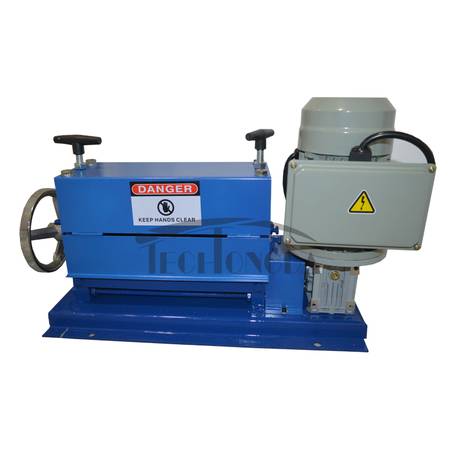

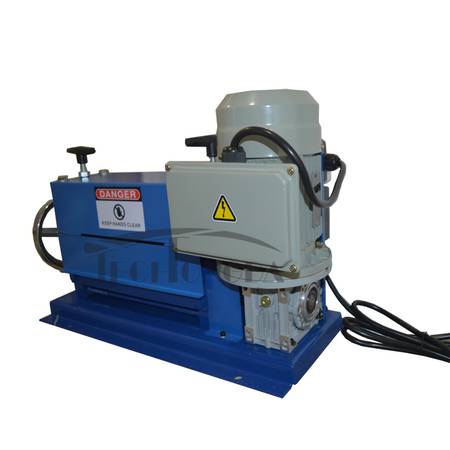

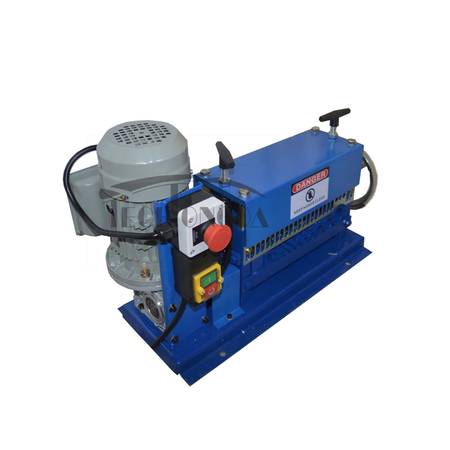

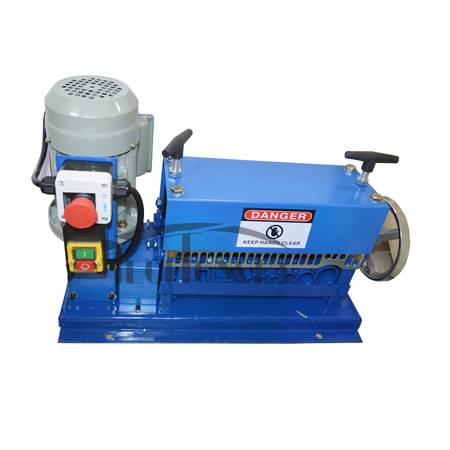

110V 370W Automatic Large Copper Wire Stripper Cable Stripping Machine - $495 (hayward / castro valley)
QR Code Link to This Post
Summarization
This machine is easy to operate and convenient to carry, it can process single core copper wire, twin cores copper wire.
Specification
Voltage：110V
Power：370W
Wire Stripping range：Φ1.5mm~ 38mm
Use notice
Comparing the cables/wires’ diameters with the feeding holes on the machine, feeding the cables/wires one piece at one time. Before feeding the cables/wires, please cut off the head of the cables/wires, to avoid gaps caused to the blades.
2.On the output side, if the cuts on the cables/wires are too deep, please check below points:
1) Please adjust the handles on the input side, screw down or loose them. (M12 handles)
2) Check whether the cables/wires on the right position as you feeding them.
3) Make sure the blades are sharp, if not, polish them with the oil stone.
3.On the output side, if see the plastic (PVC) has been stripped, but the copper wires can not been disgorged, please check below 4 points:
1) polish the axis of the upside with the oil stone.
2) Check whether the springs are loose, if yes, screw down to make them tighten.
3) The diameter of the cables/wires are too small, please adjust the space between the two axises to 0.3-0.6mm.
4) If the cables/wires you want to strip are hot, also can not get the copper wires stripped out.
4.If the cables/wires were blocked in the axises, please check below points:
1) If the springs on the press wheels are too tight, loose them.
2) There are too much oil on the cables/wires, please wipe it.
5.If see the blades tilted :
1) Check whether the center adjuster was loosed.
2) centering adjustment and adjust the screws of two sides of it.
Make sure the cables/wires’ diameter are similar with the feeding holes, large cables/wires in large feeding holes, small cables/wires in small feeding holes, flat cables/wires in flat feeding holes.
Item Include(153082)
A set of 110V 370W Wire Stripper Machine SMS-38
