Cincinnati Fan SQBI-130 industrial centrifugal fan 2600 CFM - $4,000 (berkeley north / hills)
QR Code Link to This Post
CW-TH: Clockwise Top Horizontal Discharge
2600 CFM(3600 Max) 16" W.G. static pressure(19" Max)
15 HP Baldor EM3713T motor - 3600 rpm, 3 ph, 230/460 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure
Includes inlet flange and aluminum inlet guard(not pictured)
Steel fan blade(accepts up to a 200ºF process stream).
The round steel gasket screwed onto the return port was used for the previous installation, and it can be removed.
Original paperwork(installation, operation, maintenance). Manufactured on 12/06/24.

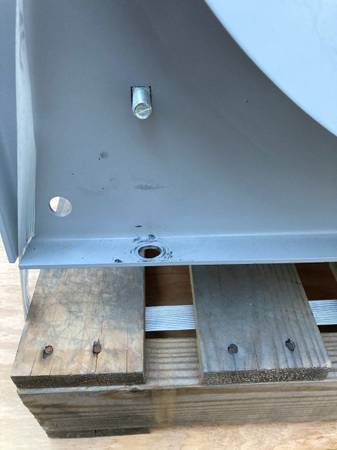

Possibly lightly used, indoors. This fan appears as though it was simply removed from the shipping pallet upon delivery but never operated. The fan blade is as clean as new and the motor wires appear they have only been used for testing at the factory. The scratched paint on the bolts are where the fan was bolted to the pallet during shipping.
Delivery available.
Some background on this fan series https://www.cincinnatifan.com/model-sqbi-backward-inclined-square-fan/
Background on this motor https://www.baldor.com/catalog/EM3713T
This is a serious industrial fan that requires a vibration meter to ensure correct installation.
$4000 OBO
The use cases are moving air through large filters, conveying light and dry materials with cyclones, and vacuum dust collection over long distances. This is less of a blower and more of a vacuum.
